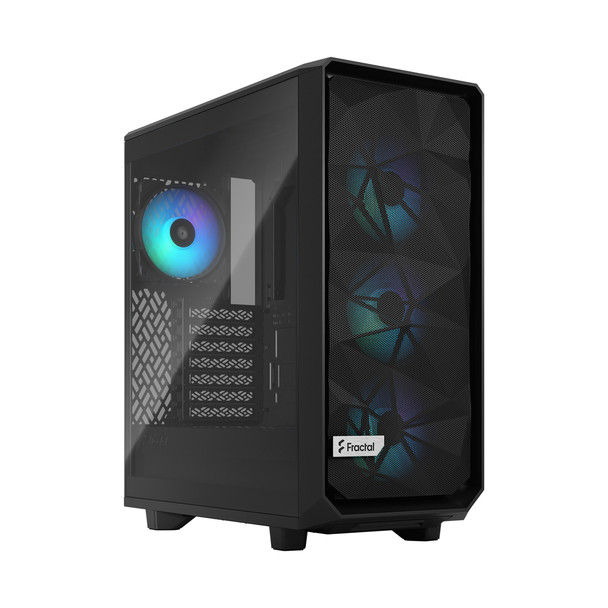

Fractal Design Meshify 2 Compact RGB PC Black ATX micro ATX Mini-ITX Steel Tempe FD-C-MES2C-06

Refined airflow
- Repositioned front fan mounting sets a wider stage for light and color
- Install up to 7x 120 mm or 4x 140 mm fans (4x 120 mm Aspect 12 RGB PWM fans included)
- Open interior layout creates a smooth airflow path from front intake to rear exhaust

Detachable front filter
- Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
- Front nylon filter that can be removed for increased airflow
- Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access

Light and color
Comes with 4x Aspect 12 RGB PWM fans pre-installed

Extremely flexible
- Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
- Full length power supply shroud with two-part removable cover conceals drive cage and excess cabling for smooth airflow and a clean interior
- Chassis opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing

Type-C Interface
- Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
- Built in RGB controller on the front/top I/O with iconic Fractal Northern Lights effect

Bolt-free glass
- Seamlessly integrated tempered glass panel with steel frame support and bolt-free top-latching mechanism
- Flexible storage options supporting two 2.5"/3.5" drives and up to four SSDs (two SSD brackets included)
- Seven bridgeless expansion slots ensure obstruction-free connections

Top priority access
Fully removable top panel and top fan bracket opens to provide excellent interior access and easy cable routing

Features


Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic


Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases


Built in RGB controller on the front/top I/O with iconic Fractal Northern Lights effect



Design


Product colour

Black


Cable management

Yes


Material

Steel, Tempered glass


Maximum CPU cooler height
.9 cm


Number of expansion slots

7


On/off button

Yes


Maximum PSU length
.5 cm


Number of 3?5" bays

2


Type

PC


Supported motherboard form factors

ATX, micro ATX, Mini-ITX


Side window

Yes


Number of 2?5" bays

4


Illumination colour

Multi


Illumination

Yes


RGB control button

Yes


Maximum graphics card length

34.5 cm


Illumination location

Case fans


Tempered glass panel(s)

Yes


Anti-dust filter

Yes



Cooling


Bottom fans diameters supported
0 mm


Front fans diameters supported
0,140 mm


Rear radiator sizes supported
0 mm


Rear fans installed

1x 120 mm


Number of rear fans supported (max)

1


Rear fans diameters supported
0 mm


Front radiator sizes supported

60,120,140,200,240,280,360 mm


Number of bottom fans supported (max)

1


Bottom radiator sizes supported
0 mm


Top radiator sizes supported
0,140,180,240 mm


Front fans installed

3x 120 mm


Number of front fans supported (max)

3


Number of top fans supported (max)

2


Top fans diameters supported
0,140 mm



Storage


SSD form factor

2.5"


Supported HDD sizes

2.5,3.5"



Weight & dimensions


Height

475 mm


Width

210 mm


Depth

424 mm


Weight

8.5 kg



Packaging content


Manual

Yes



Power supply


Supported power supply form factors

ATX


Power supply included

No



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

2


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

1


Audio input

Yes


Audio output

Yes



Packaging data


Package height

554 mm


Package depth

542 mm


Package width

320 mm


Package weight

9.8 kg
