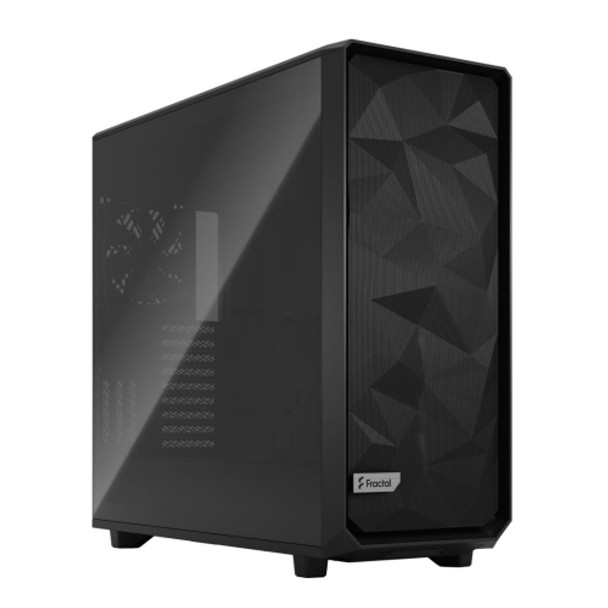

Fractal Design Meshify 2 Xl Light Tg Gaming Case W/ Light Tint Glass Window FD-C-MES2X-02

Bigger, bolder and better? With more of everything, the Meshify 2 XL is ready to take on your most ambitious builds.

Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including E-ATX and SSI-EEB
Support for radiators up to 480/420 mm in front, 480/420 mm up top, or 280/240 mm in the base in the default Open Layout
Includes 6 HDD/SSD trays, 2 SSD brackets, and 2 universal Multibrackets for mounting up to 10 drives
Expandable to 16 trays and 5 SSD brackets with 2 Multibrackets installed in the top for a max of up to 23 drives in Storage Layout
New chassis design that opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
New front nylon filter that can be removed for increased airflow
New front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
Easy-to-clean high airflow nylon filters on the top and base with full PSU coverage and convenient front access
Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
Versatile Multibrackets that convert any unused fan position to an HDD, SSD or pump mount
Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
Tool-less, top-latching panels allow quick access while preventing accidental drops
Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup

Detachable front filter


The nylon filter is easily removed from the hinged mesh panel for increased airflow
Tether-free bezel for easier access to front fan mounts
Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm)

Superlative storage


Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
Tool-less, top-latching panels allow quick access while preventing accidental drops

Flexible dual-layout design


Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm
Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB


DescriptionSpecification

Form Factor: E-ATX
#Hide#Small Form Factor: No
Power Supply Wattage: No PSU
Motherboard Support: "EE-ATX, E-ATX, ATX, Micro ATX, Mini ITX, SSI-CEB, SSI-EEB"
#Hide#Window: Yes (Window)
Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
Audio I/O
Power button
Reset button
Drive Bays: 6 x 3.5""/2.5"" - 18 positions total + 2 Multibrackets
2 x 2.5"" - 5 positions total
Expansion Slots: 9 + 3 Expansion slots
Cooling System: Included
Front: 2 x Dynamic X2 GP-14 140mm fans
Rear: 1 x Dynamic X2 GP-14 140mm fan

Fan Mounts
Front: 4 x 120 / 3 x 140 mm
Top: 4 x 120 / 3 x 140 mm
Rear: 1 x 120 / 140 mm
Bottom: 2 x 120 / 140 mm
.:
Water Cooling options:
Front: Up to 480 / 420 mm radiator
Top: Up to 480 / 420 mm radiator
Rear: 120 mm radiator
Bottom: Up to 240 / 280 mm radiator
Colour: Black
Material: Left side panel: Tempered glass dark tint
Right side panel: Steel
Compatability: GFX Card:
Storage layout: 359 mm
Open layout: 549 mm (524 mm w/ front fan)

Max CPU Cooler:5 mm

PSU:
250 mm (both HDD cages installed)
Weight/Dimensions: 14.1 kg
(LxWxH) 600 x 240 x 566 mm
w/o feet/protrusions/screws: 588 x 240 x 547 mm
Additional Features: See Overview / Video
Accessories: Accessory box
User Manual
Screw Box
Package Weight: 15.6000 kg
Warranty: 2 Years
