Fractal Design NODE 804 Cube PC Black micro ATX Mini-ATX HDD Power 16 cm FD-CA-NODE-804-BL-W

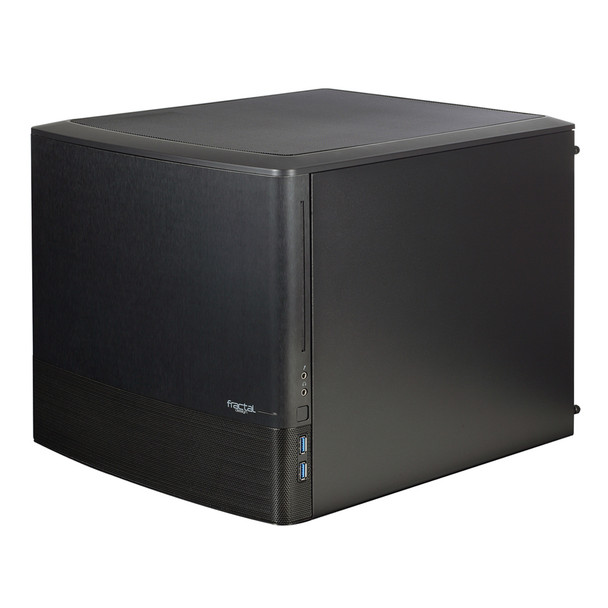

The Node 804 is a micro ATX chassis which focuses on cooling performance and maximum configurability, all packed in an interesting new form factor with Scandinavian elegant design.

The dual chamber layout separates hot running components from the cooler ones and allows for unrestricted airflow over the motherboard, processor and graphics card.

The case comes with three excellent 120mm fans but can be upgraded with several additional fans if needed.
Featuring plenty of options for placing water cooling components, tall heat sinks and hard drives.
The flexibility of this case really gives the users the possibility to create their optimal system build.

Features


Highly effective dual chamber case layout for best possible cooling with excellent water cooling compatibility, supporting up to four radiators simultaneously


Minimalistic design with an elegant brushed aluminum front panel


Unique hard drive mounting system, fitting up to 8x 3.5?, 4x 2.5" or up to 10x 3.5", 2x 2.5? drives HDD/SSD


Three Fractal Design Silent Series R2 fans included with the case and space for an additional seven fans, fan controller included


Featuring a window side panel to show off your set up in style


Additional space in the front to mount a slim slot-in ODD, optical bay drive, and 2x 2.5? drives


Five expansion slots that allows for multiple GPU setups



Design


Product colour

Black


Cable management

Yes


Maximum CPU cooler height
cm


Number of expansion slots

5


LED indicators

HDD, Power


Maximum PSU length

26 cm


Number of 3?5" bays



Type

PC


Supported motherboard form factors

micro ATX, Mini-ATX


Side window

Yes


Number of 2?5" bays

2


Maximum graphics card length

32 cm


Form factor

Cube


Anti-dust filter

Yes



Cooling


Top radiator sizes supported

240,280 mm


Front fans installed

1x 120 mm


Front fans diameters supported
0 mm


Rear fans installed

2x 120 mm


Number of rear fans supported (max)

2


Number of front fans supported (max)

4


Number of top fans supported (max)

4


Top fans diameters supported
0,140 mm


Liquid cooling capability

Yes


Rear fans diameters supported
0,140 mm


Front radiator sizes supported

240 mm



Storage


Supported HDD sizes

2.5,3.5"



Weight & dimensions


Height

307 mm


Width

344 mm


Depth

389 mm


Weight

6 kg



Packaging content


Manual

Yes



Logistics data


Harmonized System (HS) code

84733080



Power supply


Power supply included

No



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

2


Audio input

Yes


Audio output

Yes



Packaging data


Package height

468 mm


Package depth

412 mm


Package width

370 mm


Package weight

7.7 kg
