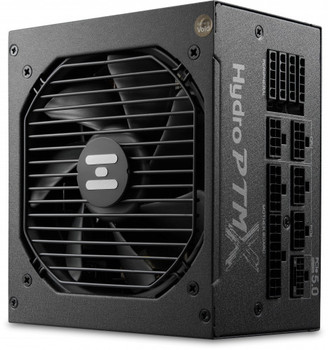

FSP Hydro PTM PRO ATX3.0PCIe5.0 1200W power supply unit 20+4 pin ATX ATX Black HPT2-1200M

FSP Hydro PTM PRO ATX3.0(PCIe5.0) 1200W power supply unit 20+4 pin ATX ATX Black

Specs Power Total power The total power that is needed by the device, or the total power produced by the device. 1200 W AC input voltage The voltage of the AC electricity that is inputted into the product. 100 - 240 V AC input frequency 50/60 Hz Power Factor Correction (PFC) type Active Combined power (+3.3V) 120 W Combined power (+12V) 1200 W Combined power (+5V) 120 W Combined power (-12V) 18.6 W Combined power (+5Vsb) 18.6 W Max output current (+3.3V) 20 A Max output current (+12V) 100 A Max output current (+5V) 20 A Max output current (-12V) 0.3 A Max output current (+5Vsb) 3 A Efficiency 90% Power protection features Features that protect the device against power problems e.g. overload. Over current, Over power, Over voltage, Short circuit Ports & interfaces Motherboard power connector The way in which the motherboard is connected to the power supply. 20+4 pin ATX Motherboard power cable length 60 cm Number of SATA power connectors 14 Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. 5 PCI Express power connectors (6+2 pin) 6 PCI Express power connectors (12+4 pin) 1 Ports & interfaces PCI Express power connectors (12+4 pin) cable length 700 mm CPU power connector (4+4 pin) CPU power cable length 70 cm Floppy drive power connector 1 Cabling type Fully-Modular Performance 80 PLUS certification 80 PLUS Platinum Purpose What the product is used for. PC Power supply unit (PSU) form factor ATX ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. 3.0 EPS version 2.92 Bearing technology FDB Design Product colour The colour e.g. red, blue, green, black, white. Black Cooling type The method used to cool the device or to cool the air around the device. Active Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. 13.5 cm Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). 1 fan(s) On/off switch The button which is pressed to switch the device on or off. Weight & dimensions Width The measurement or extent of something from side to side. 190 mm Depth The distance from the front to the back of something. 86 mm Height The measurement of the product from head to foot or from base to top. 150 mm
