Gigabyte

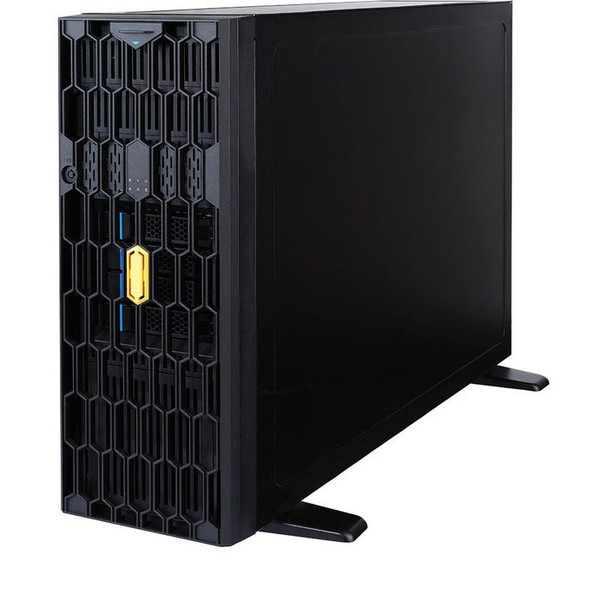

Gigabyte 6BW771Z00MR-00 W771-Z00 Socket Swrx8 Tower 6BW771Z00MR-00
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- 6BW771Z00MR-00
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Workstation on Another Level
AMD Ryzen Threadripper PRO Processors
For the professional workstation users that rely on workloads for visual effects design or rendering, there is the AMD Ryzen Threadripper PRO. Engineering, data science, and oil & gas exploration are among the fields that need the highest possible CPU platform to handle the large amounts of data in an efficient manner.
- Leading single and multi-threaded performance
- Top performance throughput with PCIe 4.0
- AMD Secure Processor: hardware root-of-trust
- Support for administrative and remote management
Multiple Memory Type and High Capacity
8 x DIMM slots for 8-channel DDR4-3200 memory
AMD Ryzen Threadrippper PRO platform has support for multiple memory types: UDIMM(ECC) / RDIMM / LRDIMM, while supporting up to 2TB of total system memory. It can offer a flexible options for workstations.
High Performance
PCIe 4.0 Ready Design
W771-Z00 is equipped with several new components to ensure the best PCIe 4.0 signal quality, including components: PCB, PCIe slots, and M.2 connectors. M.2 interface does not compromise performance and PCIe 4.0 is supported.
Supports 4 x Double Wide Accelerators
GIGABYTE servers have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for 3D rendering, deep learning and high performance computing, which enables content creators, data scientists, researchers, and engineers to tackle challenges that were once impossible.
Storage Support
Mix Drives
Plentiful NVMe and SATA Storage options that can fulfill your hot and cold data processing requirements.
Connectivity
Dual Intel 10GbE and 1GbE connections
The Intel X550-AT2 adapter provides 2 ports of 10 GbE network connectivity as well as SR-IOV features. It is perfectly designed for demanding high bandwidth applications in virtualization, media centers, content creation, and data centers.
The Intel Ethernet Controller i210-AT supports Windows Server OS with adapter fault tolerance, link aggregation, adaptive load balancing and more.
Power Efficiency
Automatic Fan Speed Control
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
Airflow-friendly Design
4x 8038 middle system fans to pull in cool air from the front side of the case and push it across the system components. Optional external fans can enhance air flow and can quickly remove the hot air from the case to prevent GPU throttling.
Value-added Management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.
GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:
- Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
- Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
- Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom MegaRAID adapters.
GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:
- GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator�s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
- GSM CLI: A command-line interface for monitoring and managing remotely.
- GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
- GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
- GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
Design
Chassis type
Tower
Fan diameter
8 cm
LED indicators
Y, Yes
Number of fans
6 fan(s)
On/off switch
Yes
Product colour
Black
Reset button
Yes
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 slots
7
Features
Audio chip
Realtek ALC4080
Audio output channels
7.1 channels
Graphics
On-board graphics card model
Aspeed AST2600
Logistics data
Harmonized System (HS) code
84714100
Memory
ECC
Yes
Memory channels
Octa-channel
Non-ECC
Yes
Number of DIMM slots
8
Supported DIMM module capacities
128GB
Supported memory types
DDR4-SDRAM
Supported RDIMM clock speeds
2133, 2400, 2666, 2933, 3200
Network
Ethernet interface type
10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN
Yes
LAN controller
Intel I210, Intel� X550-AT2
Operational conditions
Operating relative humidity (H-H)
8 - 80 %
Operating temperature (T-T)
10 - 35 �C
Storage relative humidity (H-H)
20 - 95 %
Storage temperature (T-T)
-40 - 60 �C
Package dimensions
Depth (package,cm)
58.8 cm
Gross Weight (Package, kg)
1.16 kg
Height (package,cm)
38.8 cm
Width (package,cm)
107.8 cm
Ports & interfaces
Ethernet LAN (RJ-45) ports
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
VGA (D-Sub) ports quantity
1
Power
80 PLUS certification
80 PLUS Platinum
Number of main power supplies
2
Power supply
2000 Watt
Processor
Compatible processor series
AMD Ryzen� Threadripper�
Number of processors supported
1
Processor socket
Socket sWRX8
Product dimensions
Net Weight (Product, kg)
0.89 kg
Product Depth
43.8 cm
Product Height
17.5 cm
Product Width
68 cm
Storage
Hot-swap HDD bays
Yes
Number of 3.5" bays
4
Number of storage drives supported
4
RAID levels
0, 1, 5, 10
Vendor information
Brand Name
Gigabyte
Warranty
1 Year(s)
