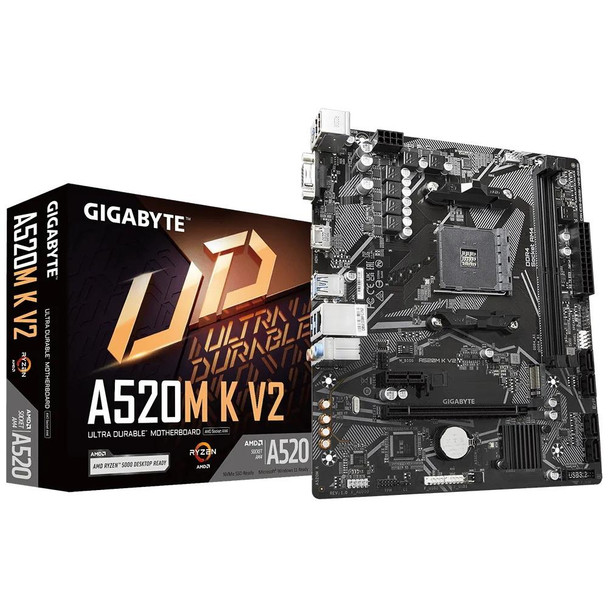

Gigabyte A520M K V2 Socket Am4/A520/Ddr4/S-Ata 600/Micro Atx A520M K V2

GIGABYTE AM4 A520M K V2 M-ATX
SKU: 123191
Product Group:Motherboards
Manufacturer:GIGABYTE
SKU:123191
Product Name:Gigabyte A520M K V2 (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)
Web Address:www.gigabyte.com
Model Number:A520M K V2
EAN:4719331852771
Package Type:Retail
Warranty:3 Years
BIOS:1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:AMD A520
CPU Interface:Socket AM4
CPU Support:https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-10/support#support-cpu
RAM Technology:DDR4 (Dual Channel)
RAM Slots:2 x 288-pin
RAM Speeds:Up to DDR4 5100 (O.C.)
Max. Memory Support:64GB
PCI Express 3.0 x16:1
PCI Express 3.0 x1:1
S-ATA 6Gb/s Port(s):4
RAID:Raid 0/1/5/10
M.2 Socket(s):1 x PCIe Gen 3.0 x4/SATA
On-Board LAN:Realtek GbE LAN chip (1 Gbps/100 Mbps)
On-Board Audio:Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

On-Board Video:Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port:1
Back USB 2.0 Port(s):2
Back USB 3.2 Port(s) Type-A Gen 1:4
Back VGA Port(s):1
Back HDMI Port(s):1
Back LAN Port(s):1
Back Audio Jack(s):3
24-pin ATX Power:1
8-pin ATX Power:1
USB 2.0 Header(s):2
USB 3.2 Header(s) Gen 1:1
Front Panel Audio Connector:1
TPM Header(s):1
Form Factor:Micro ATX
Product Width:198mm
Product Length:233mm
Package Width:23.5cm
Package Length:27cm
Package Height:5.5cm
Gross Weight:0.65Kg
Special Features:Supports AMD Ryzen 5000 Series/Ryzen 5000 G-Series/Ryzen 4000 G-Series and Ryzen 3000 Series Processors.
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs.
PCIe Gen3 x4 M.2 with PCIe NVMe and SATA mode support.
GbE LAN with Bandwidth Management.
8-Channel HD Audio with High Quality Audio Capacitors.
Rear HDMI and D-sub for Multi-display Support.
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
GIGABYTE APP Centre, Simple and Easy Use.

Package Contents:Motherboard
Manual
1 x SATA cable
IO Shield
