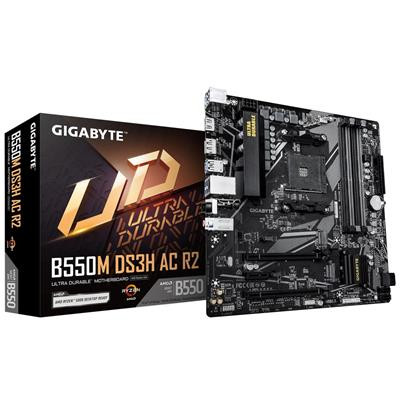

Gigabyte B550M DS3H AC R2 Socket Am4/B550/Ddr4/S-Ata 6Gb/S/Micro Atx B550M DS3H AC R2

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
7357


Product Specifications



Product Name:

Gigabyte B550M DS3H AC R2 (Socket AM4/B550/DDR4/S-ATA 6Gb/s/Micro ATX)



Web Address:

www.gigabyte.com



Model Number:

B550M DS3H AC R2



EAN:

4719331869908



Package Type:

Retail



Warranty:

3 Years



BIOS:

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Chipset:

AMD B550



CPU Interface:

Socket AM4



CPU Support:

https://www.gigabyte.com/Motherboard/B550M-DS3H-AC-R2/support#support-cpu



RAM Technology:

DDR4 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 4733 (O.C.)



Max. Memory Support:
8GB



PCI Express 3.0 x16:

1



PCI Express 4.0 x16:

1



PCI Express 3.0 x1:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/10



M.2 Socket(s):

1 x PCIe Gen 4.0 x4/SATA
1 x PCIe Gen 3.0 x4/SATA



LAN Speed:

Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)



Wireless NIC:

Wi-Fi RTL8821CE



Wireless Technology:

WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band



Bluetooth:

v5.0



On-Board Audio:

Realtek ALC1220 CODEC
High Definition Audio
2/4/5.1/7.1-channel



On-Board Video:

Processor with integrated graphics is required



Back PS/2 Keyboard/Mouse Port:

1



Back USB 2.0 Port(s):

2



Back USB 3.2 Port(s) Type-A Gen 1:

4



Back IEEE1394 Port(s):

aaaa



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

2 x Antenna connectors



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

1



USB 3.2 Header(s) Gen 1:

2



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Internal Other Port(s):

2 x Addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header



Internal Button(s):

1 x Q-Flash Plus



Form Factor:

Micro ATX



Product Width:

244mm



Product Length:

244mm



Package Width:

26.80cm



Package Length:

27cm



Package Height:

6.80cm



Net Weight:

0.98Kg



Gross Weight:

1.10Kg



Special Features:

AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors.
Digital 5+3 phases VRM solution.
Dual Channel DDR4: 4 x DIMMs
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch: PCIe slots with Quick Release Design
Ultra-Fast Storage:2 x M.2 slots, including PCIe 4.0 x1
Efficient Thermal:VRM Thermal Armor Advanced
Fast Networking:GbE LAN and Wi-Fi 5
Extended Connectivity:HDMI, Displayport
PCIe UD Slot:PCIe 4.0 x16 slots with 10X strength for graphics card and Better Heat dissipation effect



Package Contents:

Motherboard
Manual
1 x Antenna
IO Shield
2 x SATA cables
