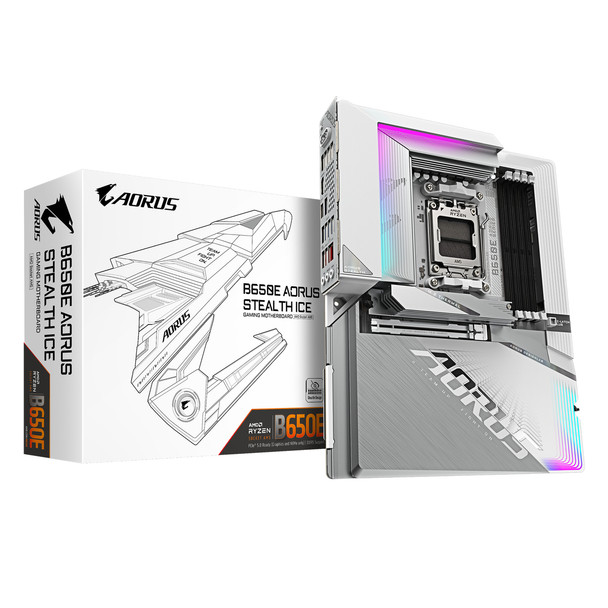

GIGABYTE B650E AORUS STEALTH ICE Motherboard - AMD Ryzen 9000 Series CPUs 12+2+2 B650E AORUS STEALTH ICE

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Features


AMD Socket AM5Supports AMD Ryzen 9000/8000/ 7000 Series Processors


Digital twin 12+2+2 phases VRM solution


Dual Channel DDR54*DIMMs with AMD EXPOMemory Module Support


PCIe UD Slot X PCIe 5.0 x16 slot with 10X strength for graphics card


WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation


M.2 EZ-Match: Magnetic alignment for easy installation of large heat sinks


EZ-Latch ClickM.2 heatsinks with screwless design


EZ-Latch PlusM.2 slots with Quick Release & Screwless Design


Sensor Panel LinkOnboard video port for hassle-free in-chassis panel setup


UC BIOSUser-Centred intuitive UX with Quick Access function


Back Plate : With an iron base plate providing enhanced stability and support, this design not only boasts an attractive appearance but also excels in functionality



Processor


Processor socket

Socket AM5


Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series


Supported processor sockets

Socket AM5


Processor manufacturer

AMD



Memory


Supported memory types

DDR5-SDRAM


Unbuffered memory

Yes


ECC ompatibility

Non-ECC


Supported memory clock speed (max)

8000 MHz


Maximum internal memory per slot

64 GB


Number of memory slots

4


Maximum internal memory

256 GB


Memory slots type

DIMM


Supported memory clock speeds

8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz


Memory channels

Dual-channel



Rear panel I/O ports


HDMI ports quantity

1


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

5


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

1


Microphone in

Yes


DisplayPort version

1.4


WiFi-AP antenna jack

2


Headphone outputs

1


Ethernet LAN (RJ-45) ports

1


USB 3?2 Gen 2 (3?1 Gen 2) Type-A ports quantity

2


HDMI version

2.1


Line-in

Yes


USB 2?0 ports quantity

4



Internal I/O


USB 2?0 connectors

2


Number of CPU fan connectors

2


USB 3?2 Gen 1 (3?1 Gen 1) connectors

1


CPU fan connector

Yes

V power connector

Yes


Front panel connector

Yes


TPM connector

Yes


USB 3?2 Gen 2x2 connectors

1


Number of RGB LED pin headers

3


Front panel audio connector

Yes


ATX Power connector (24-pin)

Yes


Number of EPS power connectors (8-pin)

1


Number of SATA III connectors

4


Number of chassis fan connectors

4


EPS power connector (8-pin)

Yes


RGB LED pin header

Yes


Number of water pump connectors

2



Graphics


Parallel processing technology support

Not supported


Discrete graphics support

Yes


Maximum resolution

4096 x 2160 pixels


HDCP

Yes


DirectX version
.0



Weight & dimensions


Height

35 mm


Width

305 mm


Depth

244 mm



BIOS


ACPI version

5.0


System Management BIOS (SMBIOS) version

2.7


Desktop Management Interface (DMI) version

2.7


BIOS type

UEFI AMI


BIOS memory size

256 Mbit


Clear CMOS jumper

Yes



Packaging content


Antenna included

Yes


Batteries included

Yes


Drivers included

Yes


Screws included

Yes


Bundled software

Norton Internet Security (OEM version) LAN bandwidth management software



Storage controllers


Supported storage drive types

HDD & SSD


Number of storage drives supported

7


RAID support

Yes


RAID levels

0, 1, 10


Supported storage drive interfaces

M.2, SATA III


Number of HDDs supported

4



Logistics data


Country of origin

China


Products per shipping (inner) case

1 pc(s)



Technical details


Warranty period

3 year(s)



Network


LAN controller

Realtek RTL8125


Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)


Bluetooth

Yes


Wi-Fi

Yes


Top Wi-Fi standard

Wi-Fi 7 (802.11be)


Ethernet LAN

Yes


WLAN controller model

MediaTek MT7925


Ethernet interface type

2.5 Gigabit Ethernet


Bluetooth version

5.4



Expansion slots


Number of M?2 (M) slots

3


3rd M?2 highest PCI Express generation

4.0


PCI Express x16 (Gen 5?x) slots

1


1st M?2 largest key size

25110


2nd M?2 largest key size

22110


2nd M?2 highest PCI Express generation

4.0


1st M?2 highest PCI Express generation

5.0


3rd M?2 largest key size

22110



Battery


Battery technology

Lithium-Manganese Dioxide (LiMnO2)


Battery type

CR2032


Battery weight

3 g


Number of battery cells

1


Lithium weight per battery

0.07 g



Features


Motherboard chipset

AMD B650


PC health monitoring

Fan, Temperature, Voltage, Water cooling


Windows operating systems supported

Windows 11 x64


Product colour

White


Motherboard chipset family

AMD


Power source type

ATX


Component for

PC


Audio chip

Realtek ALC897


Audio output channels

7.1 channels


Motherboard form factor

ATX



Packaging data


Package height

80 mm


Package depth

294 mm


Package width

345 mm


Package weight

3.56 kg
