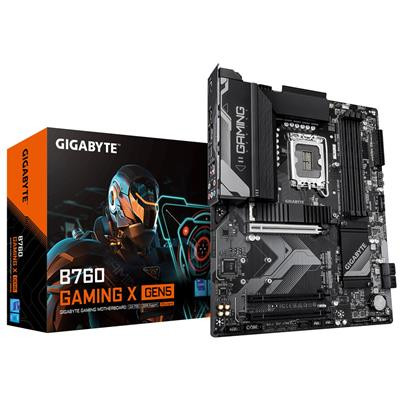

Gigabyte B760 GAMING X GEN5 Socket 1700/B760 Express/Ddr5/S-Ata 6Gb/S/Atx B760 GAMING X GEN5

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
7360


Product Specifications



Product Name:

Gigabyte B760 GAMING X GEN5 (Socket 1700/B760 Express/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.gigabyte.com



Model Number:

B760 GAMING X GEN5



EAN:

4719331872120



Package Type:

Retail



Warranty:

3 Years



BIOS:

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Chipset:

Intel B760 Express



CPU Interface:

Socket 1700



CPU Support:

https://www.gigabyte.com/Motherboard/B760-GAMING-X-GEN5/support#support-cpu



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 5600



Max. Memory Support:

256GB



PCI Express 3.0 x16:

2



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



M.2 Socket(s):

2 x PCIe Gen 4.0 x4



LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



On-Board Audio:

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

5



Back USB 3.2 Port(s) Type-A Gen 1:

1



Back USB 3.2 Port(s) Type-C Gen 1:

1



Back USB 3.2 Port(s) Type-A Gen 2:

2



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

6



Back Other Port(s):

2 x antenna connectors (2T2R)



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

1



USB 3.2 Header(s) Gen 2:

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



S/PDIF Out Header(s):

1



Internal Other Port(s):

3 x Addressable RGB Gen2 LED strip headers
1 x RGB LED strip header



Internal Button(s):

1 x Q-Flash Plus



Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

27cm



Package Length:

33.50cm



Package Height:

8cm



Net Weight:

1.56Kg



Gross Weight:

1.80Kg



Special Features:

PCIe Gen5 Performance: Perfect Sync to Win.
Supports Intel Core 14th/ 13th/12 processors.
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard.
EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design.
PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support.
Unparalleled Performance: Hybrid 8+1+1 Phases VRM Solution.
Dual Channel DDR5: 4 x DIMMs with XMP Memory Module Support.
Fast Networks: 2.5GbE LAN.
Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI.
Next Generation Storage: 3 x PCIe 4.0 x4 M.2 Connectors.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.



Package Contents:

Motherboard
Manual
1 x Antenna
2 x SATA cables
M.2 screws
One pack of M.2 thick/thin rubber pads
