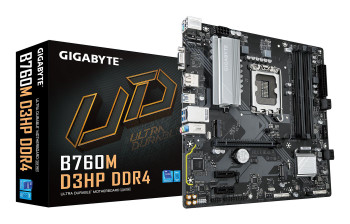

Gigabyte B760M D3HP DDR4 Socket 1700/B760 Express/Ddr4/S-Ata 6Gb/S/Micro Atx B760M D3HP DDR4

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
6581


Product Specifications



Product Name:

Gigabyte B760M D3HP DDR4 (Socket 1700/B760 Express/DDR4/S-ATA 6Gb/s/Micro ATX)



Web Address:

www.gigabyte.com



Model Number:

B760M D3HP DDR4



EAN:

4719331862848



UPC:

889523043790



Package Type:

Retail



Warranty:

3 Years



BIOS:

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Chipset:

Intel B760 Expres



CPU Interface:

Socket 1700



CPU Support:

https://www.gigabyte.com/Motherboard/B760M-D3HP-DDR4/support#support-cpu



RAM Technology:

DDR4 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR4 5333 (O.C.)



Max. Memory Support:
8GB



PCI Express 4.0 x16:

1



PCI Express 3.0 x1:

2



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):

2 x PCIe Gen 4.0 x4



LAN Speed:

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)



On-Board Audio:

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel



On-Board Video:

Processor with integrated graphics is required



Back PS/2 Keyboard/Mouse Port:

1



Back USB 2.0 Port(s):

2



Back USB 3.2 Port(s) Type-A Gen 1:

3



Back VGA Port(s):

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

2



Parallel Port Header(s):

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



S/PDIF Out Header(s):

1



Internal Other Port(s):

1 x Addressable LED strip header
1 x RGB LED strip header



Internal Button(s):

1 x Q-Flash Plus



Form Factor:

Micro ATX



Product Width:

244mm



Product Length:

244mm



Package Width:

26.5cm



Package Length:

26.5cm



Package Height:

5.5cm



Gross Weight:

0.91Kg



Special Features:

Supports Intel Core 14th/13th/12th processors.
Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution.
Dual Channel DDR4: 4 x DIMMs XMP Memory Module Support.
Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors.
Fast Networks: GbE LAN.
Extended Connectivity: Front USB-C 5Gb/s, DP, HDMI, D-Sub.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.



Package Contents:

Motherboard
Manual
I/O Shield
2 x SATA cables
