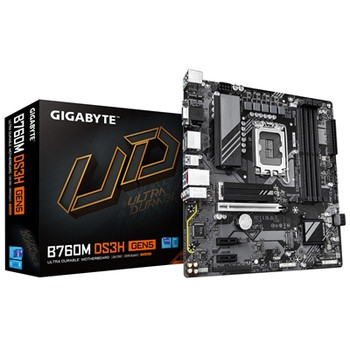

Gigabyte B760M DS3H GEN5 Socket 1700/B760 Express/Ddr5/S-Ata 6Gb/S/Micro Atx B760M DS3H GEN5

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
7358


Product Specifications



Product Name:

Gigabyte B760M DS3H GEN5 (Socket 1700/B760 Express/DDR5/S-ATA 6Gb/s/Micro ATX)



Web Address:

www.gigabyte.com



Model Number:

B760M DS3H GEN5



EAN:

4719331872793



Package Type:

Retail



Warranty:

3 Years



BIOS:


1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




Chipset:

Intel B760 Express



CPU Interface:

Socket 1700



CPU Support:

https://www.gigabyte.com/Motherboard/B760M-DS3H-GEN5/support#support-cpu



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 5600



Max. Memory Support:

256GB



PCI Express 5.0 x16:

1



PCI Express 3.0 x1:

2



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):

2 x PCIe Gen 4.0 x4



LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



On-Board Audio:


Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel




On-Board Video:

Processor with integrated graphics is required



Back PS/2 Keyboard/Mouse Port:

1



Back USB 2.0 Port(s):

2



Back USB 3.2 Port(s) Type-A Gen 1:

3



Back USB 3.2 Port(s) Type-C Gen 2:

1



Back VGA Port(s):

1



Back HDMI Port(s):

1



Back DisplayPort(s):

2



Back LAN Port(s):

1



Back Audio Jack(s):

3



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

1



Parallel Port Header(s):

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



S/PDIF Out Header(s):

1



Internal Other Port(s):


2 x Addressable RGB Gen2 LED strip headers
1 x RGB LED strip header




Internal Button(s):

1 x Q-Flash Plus



Form Factor:

Micro ATX



Product Width:

244mm



Product Length:

244mm



Package Width:

26.50cm



Package Length:

26.50cm



Package Height:

5.40cm



Net Weight:

0.96Kg



Gross Weight:

1.00Kg



Special Features:


PCIe Gen5 Performance: Perfect Sync to Win.
Supports Intel Core 14th/ 13th /12th processors.
EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design.
PCIe UD Slot SMD PCIe 5.0 Armor for enhanced graphics card support.
Unparalleled Performance: Hybrid 6+2+1 Phases VRM Solution.
Dual Channel DDR5: 4 x DIMMs XMP Memory Module Support.
Fast Networks: 2.5 GbE LAN.
Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors.
Extended Connectivity: Rear USB-C 10Gb/s, DP, HDMI, D-Sub.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.




Package Contents:


Motherboard
Manual
I/O Shield
2 x SATA cables
1 x Antenna
One pack of M.2 thick/thin rubber pads
