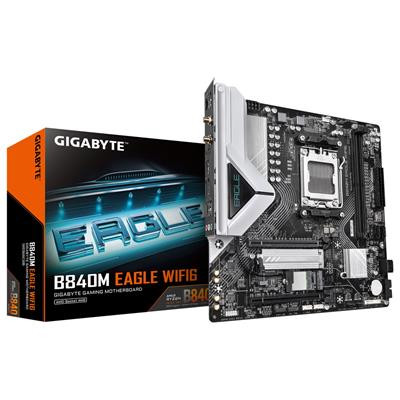

Gigabyte B840M EAGLE WIFI6 Socket Am5/B840/Ddr5/S-Ata 6Gb/S/Micro Atx B840M EAGLE WIFI6

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
7369


Product Specifications



Product Name:

Gigabyte B840M EAGLE WIFI6 (Socket AM5/B840/DDR5/S-ATA 6Gb/s/Micro ATX)



Web Address:

www.gigabyte.com



Model Number:

B840M EAGLE WIFI6



EAN:

4719331868970



Package Type:

Retail



Warranty:

3 Years



BIOS:

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Chipset:

AMD B840



CPU Interface:

Socket AM5



CPU Support:

https://www.gigabyte.com/Motherboard/B840M-EAGLE-WIFI6-rev-10-11/support#dl



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

2 x 288-pin



RAM Speeds:

Up to DDR5 7600 (O.C.)



Max. Memory Support:
8GB



PCI Express 3.0 x16:

1



PCI Express 4.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):

1 x PCIe Gen 4.0 x4
1 x PCIe Gen 3.0 x4



LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



Wireless NIC:

Wi-Fi 6



Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands



Bluetooth:

v5.3



On-Board Audio:

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel



On-Board Video:

Processor with integrated graphics is required



Back PS/2 Keyboard/Mouse Port:

1



Back USB 2.0 Port(s):

4



Back USB 3.2 Port(s) Type-A Gen 1:

2



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

2 x SMA Antenna connectors (2T2R)



Back Button(s):

1 x Q-Flash Plus



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Internal Other Port(s):

2 x Addressable RGB Gen2 LED strip headers
1 x RGB LED strip header



Form Factor:

Micro ATX



Product Width:

244mm



Product Length:

244mm



Package Width:

26.8cm



Package Length:

27cm



Package Height:

6.8cm



Net Weight:

1.23Kg



Gross Weight:

1.30Kg



Special Features:

X3D Turbo Mode: Unleash new era gaming performance.
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.
Digital 5+2+2 phases VRM solution.
Dual Channel DDR5: 2 x DIMMs with AMD EXPO Memory Module Support.
D5 Bionic Corsa for Infinite Memory Performance.
EZ-Latch: PCIe and M.2 slots with Quick Release and Screwless Design.
EZ-Latch: M.2 heatsinks with screwless design.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage: 2 x M.2 slots.
Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard.
Fast Networking: 2.5GbE LAN and Wi-Fi 6.
Extended Connectivity: HDMI, Displayport.
PCIe UD Slot: PCIe x16 slots with 10X strength for graphics card & Better Heat dissipation effect.



Package Contents:

Motherboard
Manual
Quick Installation Guide
2 x Antennas
2 x SATA cables
One pack of M.2 thick+ thin rubber pads
