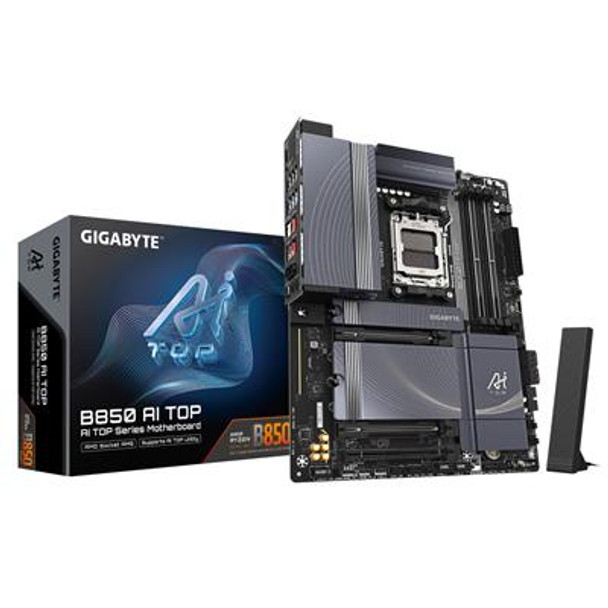

Gigabyte B850 AI TOP Am5/B850/Ddr5/S-Ata 6Gb/S/Atx B850 AI TOP

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
6176


Product Specifications



Product Name:

Gigabyte B850 AI TOP (AM5/B850/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.gigabyte.com



Model Number:

B850 AI TOP



EAN:

4719331866570



UPC:

889523045893



Package Type:

Retail



Warranty:

3 Years



BIOS:

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Chipset:

AMD B850



CPU Interface:

Socket AM5



CPU Support:

https://www.gigabyte.com/Motherboard/B850-AI-TOP/support#support-cpu



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8600 (O.C.)



Max. Memory Support:

256GB



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/10



M.2 Socket(s):

2 x PCIe Gen 5.0 x4
1 x PCIe Gen 4.0 x4



On-Board LAN:

2 x Marvell AQtion AQC113C 10GbE LAN chips
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)



Wireless NIC:

Wi-Fi 7



Wireless Technology:

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands



Bluetooth:

v5.4



On-Board Audio:

Realtek ALC1220 CODEC



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

4



Back USB 3.2 Port(s) Type-C Gen 1:

4



Back USB 3.2 Port(s) Type-A Gen 2:

3



Back DVI-I Port(s):

1



Back LAN Port(s):

2



Back Audio Jack(s):

2



Back S/PDIF Output Port(s):

1



Back Other Port(s):

2 x SMA antenna connectors (2T2R)



Back Button(s):

1 x Q-Flash Plus



24-pin ATX Power:

1



8-pin ATX Power:

2



USB 3.2 Header(s) Gen 1:

1



USB 3.2 Header(s) Gen 2:

2



USB 3.2 Header(s) Gen 2x2:

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Internal Other Port(s):

3 x Addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
1 x Noise detection header
2 x Temperature sensor headers



Internal Button(s):

1 x Power
1 x Reset



Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

27.5cm



Package Length:

34cm



Package Height:

8cm



Gross Weight:

2.69Kg



Special Features:

Training your own AI on your desk.
DDR5 OC up to 8600MT/s.
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.
Digital twin 16+2+2 phases VRM solution.
Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support.
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus: PCIe and M.2 slots with Quick Release and Screwless Design.
EZ-Latch Click: M.2 heatsinks with screwless design.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
Ultra-Fast Storage: 3 x M.2 slots, including 2 x PCIe 5.0 x4.
Efficient Thermal: VRM Thermal Armor Advanced with M.2 Thermal Guard.
Blazing Fast Networks: Dual 10GbE LAN and Wi-Fi 7 and directional Ultra-high gain antenna.
Extended Connectivity: Rear USB-C support up to 40Gb/s, Front USB-C 20Gb/s, HDMI.
High-Res Audio: ALC1220 and High-End Audio Capacitor.
Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability.
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.



Package Contents:

B850 AI TOP Motherboard
Manual
Quick Installation Guide
1 x Antenna
2 x SATA cables
1 x Noise detection cable
2 x Thermistor cables
1 x G Connector
1 x M.2 thermal pad
2 x Packs of M.2 thick/thin rubber pads
