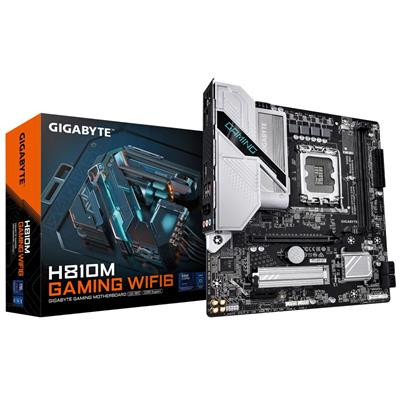

Gigabyte H410m H V2 Socket 1851//H810/Ddr5/S-Ata 6Gb/S/Micro Atx H810M GAMING WIFI6

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
6737


Product Specifications



Product Name:

Gigabyte H410M H V2 (Socket 1851//H810/DDR5/S-ATA 6Gb/s/Micro ATX)



Web Address:

www.gigabyte.com



Model Number:

H810M GAMING WIFI6



EAN:

4719331869090



UPC:

889523047941



Package Type:

Retail



Warranty:

3 Years



BIOS:

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Chipset:

Intel H810 Express



CPU Interface:

Socket 1851



CPU Support:

https://www.gigabyte.com/Motherboard/H810M-GAMING-WIFI6/support#support-cpu



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

2 x 288-pin



RAM Speeds:

Up to DDR5 6400



Max. Memory Support:
8GB



PCI Express 4.0 x16:

1



PCI Express 3.0 x1:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):

1



LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



Wireless NIC:

Wi-Fi 6



Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands



Bluetooth:

v5.3



On-Board Audio:

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel



On-Board Video:

Processor with integrated graphics is required



Back PS/2 Keyboard/Mouse Port:

1



Back USB 2.0 Port(s):

5



Back USB 3.2 Port(s) Type-A Gen 1:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

2



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



S/PDIF Out Header(s):

1



Internal Other Port(s):

2 x addressable RGB Gen2 LED strip headers



Form Factor:

Micro ATX



Product Width:

215mm



Product Length:

244mm



Package Width:

26.5cm



Package Length:

27cm



Package Height:

7cm



Gross Weight:

1.06Kg



Special Features:

Supports Intel Core Ultra processors (Series 2).
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
EZ-Latch: PCIe x16 Slot with Quick Release Design.
M.2 EZ-Latch Plus: Screwless installation for M.2 SSDs.
Friendly UI: Multi-Theme, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage: PCIe 4.0 x4 M.2 slots.
Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard.
Fast Networking: 2.5GbE LAN and Wi-Fi 6 802.11ax.
Extended Connectivity: HDMI, DisplayPort.



Package Contents:

Motherboard
Manual
Quick Installation Guide
1 x Antenna
2 x SATA cables
Pack of M.2 thick/thin rubber pads
