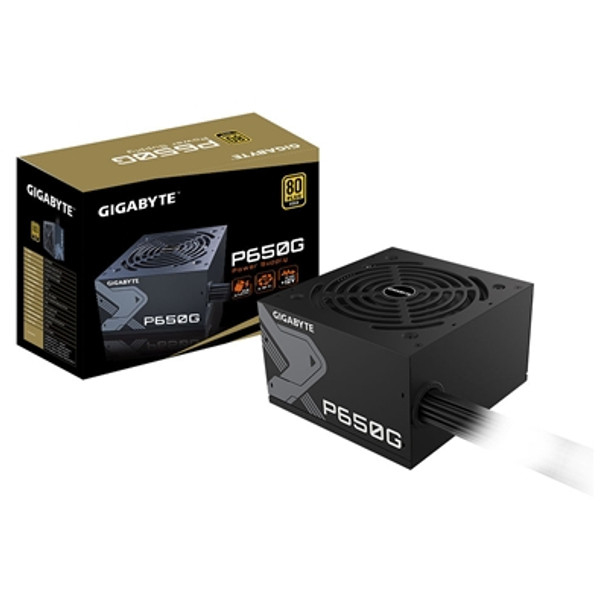

Gigabyte P650g 650W Psu 120Mm Silent Hydraulic Bearing Fan 80 Plus Gold Non Modu GP-P650G

HIGH QUALITY JAPANESE CAPACITORS
The primary capacitors are sourced from top-tier Japanese manufacturers, delivering a premium and stable power supply that effectively extends the product's lifespan.
0MM SILENT HYDRAULIC BEARING (HYB) FAN
The 120mm fan detects the current power utilization and temperature, automatically adjusting its rotational speed to minimize noise.The Hydraulic Bearing fan offers a longer and more stable lifespan in comparison to traditional sleeve fan.

PROTECTION
To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.

RELIABLE BLACK FLAT CABLE
The utilization of black flat cables minimizes clutter while enhancing the thermal performance of the chassis.

80 PLUS GOLD CERTIFIED
The 80 Plus Gold certification guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.

SINGLE +12V RAIL
The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.

COMPACT DESIGN
Through GIGABYTE's exceptional design capabilities and the use of high-quality materials, we have successfully reduced the size of the power supply unit. This compact power supply not only facilitates easier installation into various chassis but also enhances the thermal efficiency within the case.

Model
GP-P650G

Type
Intel Form Factor ATX 12V

PFC
Active PFC(>0.9 typical)

Input Voltage0-240 Vac(full range)

Input Current
9-4A

Input Frequency
60-50 Hz

Output Capacity
650W

Dimension0 x 140 x 86 mm

Fan Type0mm Hydraulic Bearing (HYB) Fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protection
OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal0-500ms

Hold Up Time
>16ms

Cable Type
Flat, All black

Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-e 6+2 Pin x 4 : 500mm+150mm*2
SATA x 6 : 500mm+150mm+150mm*2
4 Pin Peripheral x 3: 500mm+150mm+150mm*1
