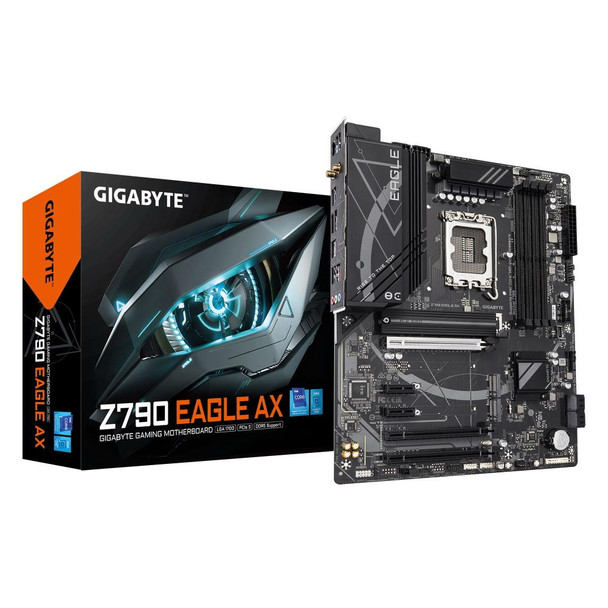

Gigabyte Z790 EAGLE AX Socket 1700/Z790 Express/Ddr5/S-Ata 6Gb/S/Atx Z790 EAGLE AX

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
5063


Product Specifications



Product Name:

Gigabyte Z790 EAGLE AX (Socket 1700/Z790 Express/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.gigabyte.com



Model Number:

Z790 EAGLE AX



EAN:

4719331860998



UPC:

889523042120



Package Type:

Retail



Warranty:

3 Years



BIOS:

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




Chipset:

Intel Z790 Express



CPU Interface:

Socket 1700



CPU Support:

https://www.gigabyte.com/Motherboard/Z790-EAGLE-AX-rev-10/support#support-cpu



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 7600 (O.C.)



Max. Memory Support:
2GB



PCI Express 3.0 x16:

1



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

1



PCI Express 3.0 x1:

2



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):

2 x PCIe Gen 4.0 x4
1 x PCIe Gen 4.0 x4/SATA




LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



Wireless NIC:

Wi-Fi 6E



Bluetooth:

v5.3



On-Board Audio:

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel




On-Board Video:

Processor with integrated graphics is required



Back PS/2 Keyboard/Mouse Port:

1



Back USB 2.0 Port(s):

2



Back USB 3.2 Port(s) Type-A Gen 1:

4



Back USB 3.2 Port(s) Type-A Gen 2:

1



Back USB 3.2 Port(s) Type-C Gen 2:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

2 x SMA antenna connectors (1T1R)



24-pin ATX Power:

1



8-pin ATX Power:

2



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

2



Thunderbolt AIC Connector(s):

2



Front Panel Audio Connector:

1



TPM Header(s):

1



S/PDIF Out Header(s):

1



Internal Other Port(s):

2 x addressable LED strip headers



Internal Button(s):

1 x Reset
1 x Q-Flash Plus




Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

27.3cm



Package Length:

34cm



Package Height:

8cm



Gross Weight:

1.66Kg



Special Features:

Supports Intel Core 14th/ 13th /12th processors.
Unparalleled Performance: Twin 12+1+1 Phases Digital VRM Solution.
Dual Channel DDR5: 4 x DIMMs with XMP 3.0 Memory Module Support.
Next Generation Storage: 3 x PCIe 4.0 x4 M.2 Connectors.
Advanced Thermal Design and M.2 Thermal Guard: To Ensure VRM Power Stability and M.2 SSD Performance.
EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design.
Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax.
Extended Connectivity: DP, HDMI, Rear USB-C 10Gb/s.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.




Package Contents:

Motherboard
