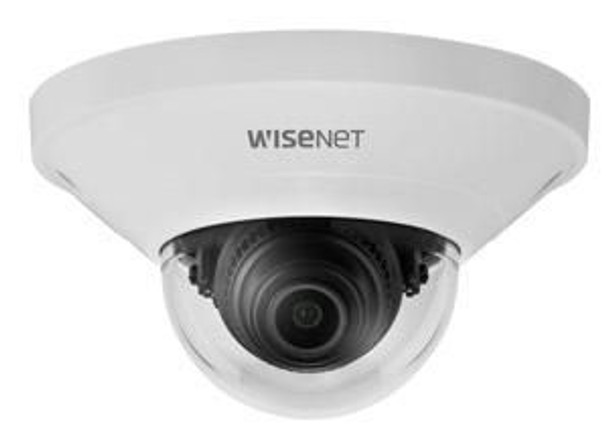

Hanwha QND-6011 2MP Mini Dome QND-6011

Wisenet Q network indoor mini dome camera, 2MP @30fps, 2.8mm fixed lens (113.74�), triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, 120dB WDR, Auto Day & Night (ICR), Business Analytics (People counting), Motion detection, Tampering, Defocus detection, Hallway View, microSD/SDHC/SDXC slot, LDC support (Lens Distortion Correction), IP42, IK08, PoE, Compact size 99 x 56mm/145gr

Camera



Angle of rotation



355 �


Camera pan control



Yes


Camera tilt control



Yes


Lens viewing angle, diagonal



134.45 �


Lens viewing angle, horizontal



113.74 �


Lens viewing angle, vertical



61.5 �


Minimum illumination



0.1 lx


Pan range



0 - 350 �


Tilt angle range



0 - 69 �


Viewing angle, diagonal



134.45 �


Viewing angle, horizontal



113.74 �


Viewing angle, vertical



61.5 �


White balance



ATW, AWC, Indoor, Manual, Outdoor


Design



Form factor



Dome


Housing material



Plastic


IK code



IK08


International Protection (IP) code



IP42


Mounting type



Ceiling


Product colour



White


Features



NDAA Compliance



Yes


Image sensor



Number of effective pixels (H x V)



1920 x 1080 Pixels


Optical sensor size



1/2.8 "


Sensor type



CMOS


Lens system



Fixed focal length



2.8 mm


Fixed focus



Yes


Focal length range



2.8 mm


Maximum aperture number



2


Management features



Web-based management



Yes


Network



Bluetooth



No


Ethernet interface type



Fast Ethernet


Ethernet LAN



Yes


Number of users



6 user(s)


Quality of Service (QoS) support



Yes


Streaming method



Multicast, Unicast


Supported network protocols



IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP


Wi-Fi



No


Night vision



Night vision



No


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



-10 - 55 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-30 - 60 �C


Package dimensions



Depth (package,cm)



14.5 cm


Gross Weight (Package, kg)



2.94 kg


Height (package,cm)



12 cm


Width (package,cm)



14.5 cm


Packaging content



Number of cameras



1


Performance



Connectivity technology



Wired


Day/night mode



Yes


Languages support



Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish


Number of languages



17


Placement supported



Indoor & outdoor


PTZ control



No


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Power



Power consumption (Power over Ethernet (PoE))



4.8 Watt


Power consumption (typical)



2.8 Watt


Power source type



PoE


Product dimensions



Net Weight (Product, kg)



0.3 kg


Product Depth



14.3 cm


Product Height



5.6 cm


Product Width



9.9 cm


Security



Active tampering alarm



Yes


Alert notification type



E-mail


Intelligent Video Surveillance (IVS) system features



Defocus, People counting


IP address filtering



Yes


Password protection



Yes


Password protection type



User


Security algorithms



EAP-TLS, HTTPS, LEAP, SSL/TLS


Video motion detection



Yes


Storage



Built-in HDD



No


Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC


Flash memory



256 MB


Internal memory



512 MB


Maximum memory card size



128 GB


System requirements



Mac operating systems supported



Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave


Windows operating systems supported



Windows 10, Windows 7, Windows 8, Windows 8.1


Vendor information



Brand Name


Hanwha


Warranty



5 Year(s)


Video



Back Light Compensation (BLC)



Yes


Bit rate control



Constant Bit Rate (CBR)/Variable Bit Rate (VBR), Variable Bit Rate (VBR)


Frame rate



30 fps


Maximum resolution



1920 x 1080 Pixels


Noise reduction



Yes


Privacy masking



Yes


Supported graphics resolutions



640 x 360, 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)


Total megapixels



2 MP


Video compression formats



H.264, H.265, M-JPEG


Video formats supported



H.264, H.265, M-JPEG


Video intelligence analytic



Yes


Weight & dimensions



Diameter



9.9 cm
