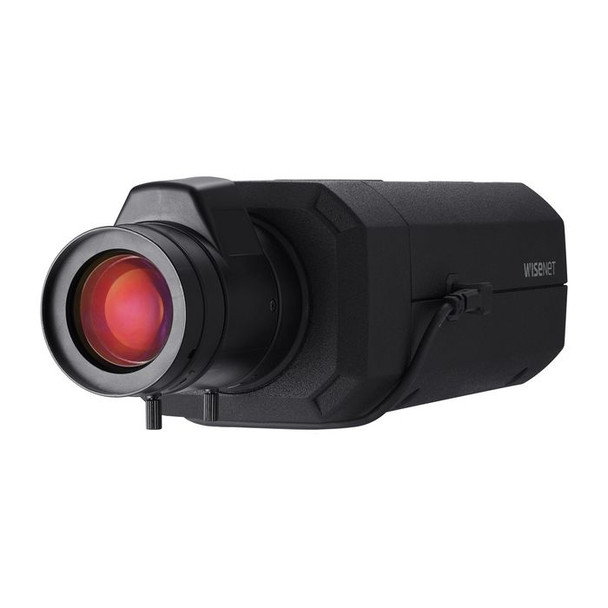

Hanwha XNB-8003 6MP AI Box Camera XNB-8003

Wisenet X AI powered by Wisenet 7 network box camera, 1/1.8" progressive CMOS, 6MP @30fps, 0.03 Lux@F1.2 (Color), 0.03 Lux@F1.2 (B/W),30IRE simple focus, triple codec H.265/H.264/MJPEG with WiseStream III, Multiple streaming, 120dB WDR, True Day & Night (ICR), Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle � car, truck, bus, bicycle, motorcycle/Licence plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear,Digital Image Stabilization with built-in Gyro sensor, Bi-directional audio and dual SD/SDHC/SDXC slot, USB port for easy installation, PoE/12VDC

Audio



Audio detection



Yes


Audio formats supported



AAC-LC, ADPCM, G.711, G.711 ?-law, G.726


Audio input channels



1 channels


Audio output channels



1 channels


Camera



Camera shutter speed



1/12000 Second


Camera shutter type



Electronic


Minimum illumination



0.03 lx


White balance



ATW, AWC, Indoor, Manual, Outdoor


Design



Form factor



Box


Housing material



Aluminium


Mounting type



Ceiling/wall


Product colour



Black


Features



NDAA Compliance



Yes


Image sensor



Number of sensors



1


Optical sensor size



1/1.8 "


Sensor type



CMOS


Management features



Web browser



Yes


Network



Ethernet interface type



Fast Ethernet


Ethernet LAN



Yes


Number of users



20 user(s)


Quality of Service (QoS) support



Yes


Streaming method



Multicast, Unicast


Supported network protocols



IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)


Night vision



Night vision



Yes


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



-10 - 55 �C


Storage relative humidity (H-H)



0 - 90 %


Storage temperature (T-T)



-50 - 60 �C


Package dimensions



Depth (package,cm)



13.1 cm


Gross Weight (Package, kg)



0.19125 kg


Height (package,cm)



94 cm


Width (package,cm)



23.5 cm


Packaging content



Number of cameras



1


Performance



Connectivity technology



Wired


Day/night mode



Yes


Dynamic range



120 dB


Infrared (IR) cut-off filter



Yes


Languages support



Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish


Number of languages



17


People counting function



Yes


Placement supported



Indoor & outdoor


PTZ control



Yes


PTZ modes



Digital PTZ, Preset point


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



BNC output ports



1


Ethernet LAN (RJ-45) ports



1


RS-422 ports



1


USB port



Yes


Power



DC output voltage



12


Power consumption (max)



19 Watt


Power consumption (Power over Ethernet (PoE))



12.9 Watt


Power consumption (typical)



9.5 Watt


Power source type



DC, PoE


Product dimensions



Net Weight (Product, kg)



0.88 kg


Product Depth



16.5 cm


Product Height



6.7 cm


Product Width



8.1 cm


Security



Active tampering alarm



Yes


Alarm input channels



2


Anti-flicker



Yes


IP address filtering



Yes


Video motion detection



Yes


Storage



Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC


Flash memory



512 MB


Maximum memory card size



512 GB


Vendor information



Brand Name


Hanwha


Warranty



5 Year(s)


Video



Back Light Compensation (BLC)



No


Bit rate control



Constant Bit Rate (CBR), Variable Bit Rate (VBR)


Flip & mirror



Yes


Frame rate



120 fps


Image stabilizer



Yes


Maximum resolution



3328 x 1872 Pixels


Noise reduction



Yes


Privacy masking



Yes


Supported graphics resolutions



320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2592 x 1944, 2688 x 1520, 3072 x 1728


Total megapixels



6 MP


Video formats supported



H.264, H.265, M-JPEG


Video streaming



Yes
