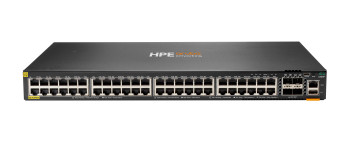

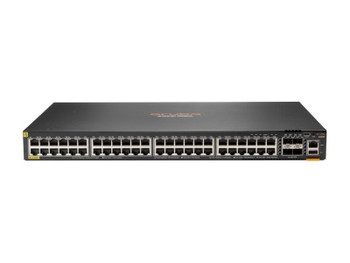

Hewlett Packard Enterprise Aruba 6300F 48-port 1GbE Class 4 PoE & 4-port SFP56 M JL665A

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.

What is new supporting point:Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments

Specs




Management features


Switch type

What switch device has, managed or unmanaged.

Managed


Switch layer

A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).

L3


Quality of Service (QoS) support




Ports & interfaces


Basic switching RJ-45 Ethernet ports quantity

The number of basic switching RJ-45 Ethernet ports (sockets).

48


Basic switching RJ-45 Ethernet ports type

The type/category of basic switching RJ-45 Ethernet ports (sockets).

Gigabit Ethernet (10/100/1000)


Fiber ports quantity

The number of sockets (ports) for fibers (cables).

4


Fiber optic connector

This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.

SFP, SFP+, SFP28, SFP56


Network


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.1Q, IEEE 802.1p, IEEE 802.1v, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x

G support

The product can use Oracle 10G, which is a database management system introduced in 2003.




Port mirroring




Flow control support




Link aggregation




Rate limiting




Auto MDI/MDI-X

A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.




Spanning tree protocol




VLAN support

A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.




Number of VLANs

4094


Data transmission


Switching capacity

The data transfer capacity of the switch per second.

496 Gbit/s


Throughput

369 Mpps


MAC address table

The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.

29490 entries


Latency (1 Gbps)

2.28 -s


Latency (10 Gbps)

1.46 -s


Jumbo frames support




Packet buffer memory

8 MB


Security


DHCP features

DHCP server


Access Control List (ACL)




IGMP snooping




SSH/SSL support




Authentication type

Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.

RADIUS


Multicast features


Multicast support





Protocols


Routing protocols

BGP, BGP4, IP, OSPF


Design


Rack mounting

The type of mounting that can position devices in a shelving system (rack).




Stackable

Devices can be placed on top of each other.




Form factor

The shape or design of the product.

1U


Product colour

The colour e.g. red, blue, green, black, white.

Grey


Performance


Physical stacking (units)



Built-in processor

Whether or not a processor is built into the device.




Processor frequency

The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.
00 MHz


Memory type

Type of memory in the device e.g. DDR3, SRAM (Static RAM).

DDR4-SDRAM


Internal memory

The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

8000 MB


Flash memory

32000 MB


Power


Power source

What is providing power for the product e.g. mains electricity.

AC


Power supply included

There is a power supply with this product.




AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50 - 60 Hz


Power consumption (max)

The maximum amount of power used by the device.

86 W


Power over Ethernet (PoE)


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Total Power over Ethernet (PoE) budget

740 W


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 45 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 -C


Operating relative humidity (H-H)
- 95%


Storage relative humidity (H-H)
- 90%


Weight & dimensions


Width

The measurement or extent of something from side to side.

44 mm


Depth

The distance from the front to the back of something.

442 mm


Height

The measurement of the product from head to foot or from base to top.

327 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

5.1 kg


Logistics data


Harmonized System (HS) code

85176990
