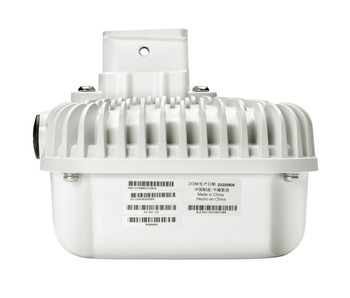

Hewlett Packard Enterprise Aruba AP-565 RW 1774 Mbit/s Power over Ethernet PoE W R4W43A

The HPE Aruba Networking 560 Series Outdoor Access Points provide cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and maximum aggregate data rate of 1.49 Gbps, the 560 series delivers the speed and reliability needed to bring medium-density Wi-Fi 6 outdoors. These Wi-Fi 6 outdoor access points are ready to survive high wind, extreme temperatures, and moisture and can be quickly deployed using zero touch provisioning (ZTP). HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and virtual private networks (VPNs). AI?powered analytics, end?to?end orchestration and automation, and advanced security features are built natively into the solution. The 560 series outdoor APs include a limited lifetime warranty.

What is new supporting point:Small form factor for flexible deployment.
Client and RF optimization to match clients with the best available access point and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls (PEFs) that automatically enforce consistent policies across all networks, keeping users and devices secure
Entry-level outdoor Wi-Fi 6 (802.11ax) access points that provide up to 1.49 Gbps peak aggregate data rate and are ideal for outdoor and warehouse environments
Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40?C to +55?C)
Ready for Internet of Things (IoT) with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee

Specs




Features


2.4 GHz




5 GHz




Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.
74 Mbit/s


Maximum data transfer rate (2.4 GHz)

574 Mbit/s


Maximum data transfer rate (5 GHz)
00 Mbit/s


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000 Mbit/s


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11ax, IEEE 802.15.4


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Bluetooth version

The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.0


MDI / DMI-X automatic switchover




MIMO




MIMO type

Multi User MIMO


Spread spectrum method

DSSS, OFDM, OFDMA


Modulation

Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.
-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK


Security


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

WPA2, WPA3


Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


USB connector type

The type of USB connector/port that this product has.

USB Type-C


Power


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Power consumption (max)

The maximum amount of power used by the device.
.6 W



Design


Placement

Where the product can be placed e.g. floor, wall.

Pole, Wall


Product colour

The colour e.g. red, blue, green, black, white.

White


Antenna


Antenna type

Type of antenna, also known an aerial, e.g. external, internal.

Internal


Antenna direction type

Omni-directional


Antenna features

Integrated antenna


Antenna gain level (max)

Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.

5.4 dBi


Certificates


Compliance certificates

Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)


Certification

None


Weight & dimensions


Width

The measurement or extent of something from side to side.
5 mm


Depth

The distance from the front to the back of something.
0 mm


Height

The measurement of the product from head to foot or from base to top.
5 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.03 kg


Operational conditions


Operating relative humidity (H-H)

5 - 95%


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-40 - 55 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 -C


Operating altitude

0 - 3000 m


Logistics data


Harmonized System (HS) code

85176990
