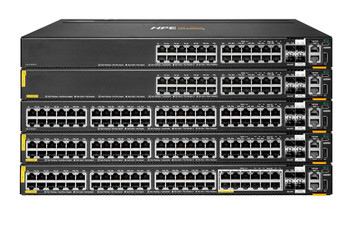

Hewlett Packard Enterprise R8Q71A network switch Managed L3 Gigabit Ethernet 10/ R8Q71A

The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as security cameras and wireless APs.

What is new supporting point:Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification

Specs




Management features


Switch type

What switch device has, managed or unmanaged.

Managed


Switch layer

A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).

L3


Ports & interfaces


Basic switching RJ-45 Ethernet ports quantity

The number of basic switching RJ-45 Ethernet ports (sockets).

36


Basic switching RJ-45 Ethernet ports type

The type/category of basic switching RJ-45 Ethernet ports (sockets).

Gigabit Ethernet (10/100/1000)


Installed SFP modules quantity

An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device.

4


Console port

RJ-45/USB Type-C


Network


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

G support

The product can use Oracle 10G, which is a database management system introduced in 2003.




Data transmission


Switching capacity

The data transfer capacity of the switch per second.

272 Gbit/s


Throughput
0.9 Mpps


MAC address table

The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.

32000 entries


Packet buffer memory

8 MB


Design


Rack mounting

The type of mounting that can position devices in a shelving system (rack).




Stackable

Devices can be placed on top of each other.




Performance


Physical stacking (units)

8


Built-in processor

Whether or not a processor is built into the device.




Processor model

The model number for the processor in a computer.

ARM Cortex-A72


Processor frequency

The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.
00 MHz



Performance


Memory type

Type of memory in the device e.g. DDR3, SRAM (Static RAM).

DDR4-SDRAM


Internal memory

The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

8000 MB


Flash memory
000 MB


Power


Power source

What is providing power for the product e.g. mains electricity.

AC


Power supply included

There is a power supply with this product.




AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

76 W


Power over Ethernet (PoE)


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Power over Ethernet (PoE) power per port

60 W


Total Power over Ethernet (PoE) budget
40 W


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 45 -C


Weight & dimensions


Width

The measurement or extent of something from side to side.

43.9 mm


Depth

The distance from the front to the back of something.

442.5 mm


Height

The measurement of the product from head to foot or from base to top.

383.8 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

6.01 kg
