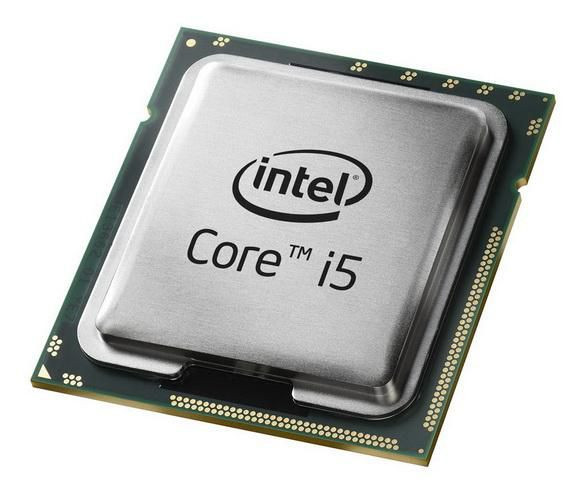

HP 586376-001-RFB Quad Core i5-750 processor 586376-001-RFB

The previous generation Intel� Core� i5 processor automatically allocates processing power where it's needed most,� performance that accelerates in response to demanding tasks. Whether you�re creating HD video, composing digital music, editing photos, or playing the coolest PC games�with the Intel Core i5 processor you can multitask with ease and be more productive than ever.

Intel� Turbo Boost Technology maximizes speed for demanding applications, dynamically accelerating performance to match your workload�more performance when you need it the most.

Intel� Hyper-Threading Technology (Intel� HT Technology)� delivers two processing threads per physical core for a total of four threads for massive computational throughput. This 4-way multi-task processing allows each core of your processor to work on two tasks at the same time. Available on Intel� Core� i5-600 processor series.

Intel� HD Graphics provides superb visual performance for sharper images, richer color, and life-like video and audio. Available on Intel Core i5-600 processor series.

Intel� Smart Cache is a shared cache dynamically allocated to each processor core, based on workload. This efficient, optimized implementation increases the probability that each core can access data from the fast cache, significantly reducing latency to frequently used data and improving performance. Optimized for industry-leading multi-threaded games.

Features



Embedded options available



Yes


Execute Disable Bit



Yes


Idle States



Yes


Maximum number of PCI Express lanes



16


Number of Processing Die Transistors



774 M


PCI Express configurations



1x16, 2x8


PCI Express slots version



2.0


Processing Die size



296 mm�


Supported instruction sets



SSE4.2


Thermal Monitoring Technologies



No


Memory



Maximum internal memory supported by processor



16 GB


Memory channels



Dual-channel


Memory clock speeds supported by processor



1066, 1333


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



72.7 �C


Other features



Intel� Virtualization Technology (Intel� VT)



VT-x


Package dimensions



Gross Weight (Package, kg)



0.7 kg


Power



Thermal Design Power (TDP)



95 Watt


Processor



Box



No


Memory bandwidth supported by processor (max)



21 GB/s


Processor base frequency



2.66 GHz


Processor boost frequency



3.2 GHz


Processor cache



8 MB


Processor cache type



L3


Processor cores



4


Processor family



Intel� Core� i5


Processor frequency



2.66 GHz


Processor generation



Intel� Core� i5


Processor lithography



45 nm


Processor model



i5-750


Processor operating modes



64-bit


Processor socket



LGA 1156 (Socket H)


Processor threads



4


Stepping



B1


System bus rate



2.5 GT/s


Thermal Design Power (TDP)



95 Watt


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



No


Intel Trusted Execution Technology



No


Intel Virtualization Technology (VT-x)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



No


Intel� Hyper Threading Technology (Intel� HT Technology)



No


Intel� Turbo Boost Technology



Yes


Intel� vPro� Platform Eligibility



No


Intel� vPro� Technology



No


Product dimensions



Net Weight (Product, kg)



0.6 kg


Vendor information



Brand Name


HP


Warranty



1 Year(s)
