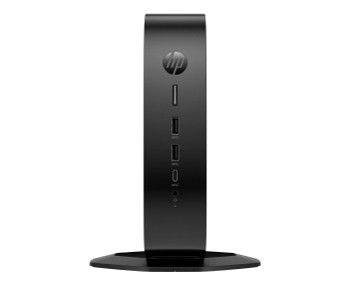

HP Elite t755 3 GHz Windows 10 IoT Enterprise 1.4 kg Black V2546 5H0Y7EA#ABU

Optimal thin client performance, reliability, and security
Enable productivity with the performance and reliability of the HP Elite t755 Thin Client, featuring advanced security from both cyber- and physical-based attacks for IT peace of mind. Built to support demanding performance with the progressive 6-core 45w AMD Ryzen- V2546 Processor[1], helping users tackle mission-critical tasks.

Specs




Processor


Processor frequency

The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.

3 GHz


Processor manufacturer

The manufacturer that produced the processor.

AMD


Processor family

A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

AMD Ryzen Embedded


Processor generation

AMD Ryzen Embedded V2000 Series


Processor model

The model number for the processor in a computer.

V2546


Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

6


Processor threads



Processor boost frequency

The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

3.9 GHz


Processor cache

8 MB


L2 cache

The CPU cache (Level 2) is a smaller, faster memory which stores copies of the data from the most frequently used main memory locations.

3 MB


L3 cache

8 MB


Memory


Internal memory

A computer's memory which is directly accessible to the CPU.

8 GB


Internal memory type

The type of internal memory such as RAM, GDDR5.

DDR4-SDRAM


Memory clock speed

The frequency at which the memory (e.g. RAM) runs.

3200 MHz


Memory slots

Number and type of memory expansion slots, including connector and memory module descriptions.

2x SO-DIMM


Memory layout (slots x size)

The slots and size of the memory for the CPU.

2 x 4 GB


Maximum internal memory

The maximum internal memory which is available in the product.

32 GB


Storage


Total storage capacity

The total amount of data that can be stored on the device.

256 GB


Storage media

Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD


Number of storage drives installed

Amount of storage drives built into the device.

1


Storage drive interface

Where the storage device links with other parts of the product, or an external device.

PCI Express


Storage drive size

The size of the storage drive, given in inches ('').

M.2


SSD form factor

The size of the solid-state drive, given in inches

M.2


NVMe

NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.




Graphics


On-board graphics card

Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.




On-board GPU manufacturer

AMD


On-board graphics card model

"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

AMD Radeon Graphics


Audio


Built-in speaker(s)

The device contains speaker(s) to produce sound.




Network


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.





Network


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000 Mbit/s


Cabling technology

Type of cable technology performance.
/100/1000Base-T(X)


Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4


USB Type-C ports quantity

1


Combo headphone/mic port




DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

4


Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


Display


Display included

This product includes a display.




Software


Operating system installed

Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 10 IoT Enterprise


Power


Power supply

The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.

90 W


Certificates


Country of origin

Country where the device is made. Aka Country of manufacture (COM).

China


Sustainability


Sustainability certificates

ENERGY STAR, EPEAT


Weight & dimensions


Width

The measurement or extent of something from side to side.

50 mm


Depth

The distance from the front to the back of something.

210 mm


Height

The measurement of the product from head to foot or from base to top.

210 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.4 kg


Logistics data


Manufacturer warranty

1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.


Expansion slots


PCI Express x16 slots

1


Brand-specific features


HP GTIN (EAN/UPC)
7961997880


Packaging content


Mouse included

A mouse is included with this product.




Keyboard included

A keyboard is part of the bundle/set.




Mouse connectivity

Wired


Keyboard connectivity

Wired


Other features


Keyboard type

USB


UNSPSC-code

43211506
