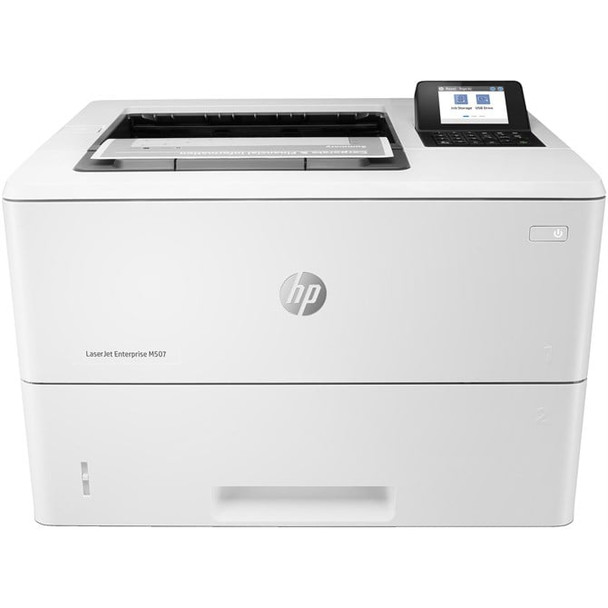

HP LaserJet Enterprise M507dn 1PV87A#ABU

HP JetIntelligence Cartridge

Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Specs




Printing


Duplex printing mode

Auto


Print resolution black
00 x 1200 DPI


Colour

The main colour of the product.




Print technology

Indicates the method used to print by this product.

Laser


Duplex printing

Feature of computer printers and multifunction printers (MFPs) that allows the printing of a sheet of paper on both sides (automatically or manually)




Maximum resolution

Maximum printing resolution.
00 x 1200 DPI


Print speed (black, normal quality, A4/US Letter)

The print speed of a printer for black & white A4 pages, normal quality. The exact speed varies depending on the system configuration, software program, and document complexity.

43 ppm


Warm-up time

Time needed before printing after power switched on.
0 s


Time to first page (black, normal)

5.9 s


Print margins (top, bottom, right, left)

4.3 mm


Watermark printing




Secure printing




Features


Maximum duty cycle

The maximum number of prints/copies made by a printer/copier in a fixed period.
0000 pages per month


Recommended duty cycle
00 - 7500 pages per month


Printing colours

The colours that can be produced by the printer.

Black


Number of print cartridges

The amount of print cartridges. A print cartridge is a container holding a quantity of ink which is inserted into a inkjet printer mechanism.

1


Page description languages

PostScript 3, PDF 1.7, PCL 6


Printer fonts

Scalable, TrueType, Windows, PCL, PostScript


Country of origin

Country where the device is made. Aka Country of manufacture (COM).

Brazil, Japan, Philippines


Replacement cartridges

CF289A HP 89A Black Original LaserJet Toner Cartridge (5,000 pages);CF289X HP 89X High Yield Black Original LaserJet Toner Cartridge (10,000 pages);CF289Y HP 89Y Extra High Yield Black Original LaserJet Toner Cartridge (20,000 pages)


HP segment

Business


Input & output capacity


Total number of input trays

2


Total input capacity

650 sheets


Total output capacity

250 sheets


Paper tray 1 input capacity
0 sheets


Paper tray 2 input capacity

550 sheets


Multi-Purpose tray




Multi-Purpose tray input capacity
0 sheets


Maximum number of input trays

5


Maximum input capacity

2300 sheets


Maximum output capacity

Maximum number of sheets this product can hold in all available standard and optional output trays.

250 sheets


Paper handling


Maximum ISO A-series paper size

The maximum paper size the device can handle, defined by ISO A-series.

A4


Paper tray media types

Plain paper, Bond paper, Recycled paper, Envelopes, Card stock, Labels, Transparencies, Rough paper


ISO A-series sizes (A0...A9)

Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents.

A4, A5, A6


ISO B-series sizes (B0...B9)

B5


ISO C-series sizes (C0...C9)

C5, C6


Non-ISO print media sizes

Oficio, 16K


JIS B-series sizes (B0...B9)

B5, B6


Envelopes sizes

B5, C5, C6, DL


Photo paper sizes
x15 cm


Custom media width

76.2 - 215.9 mm


Custom media length
7 - 355.6 mm


Paper tray media weight

60 - 200 g/m?


Ports & interfaces


Standard interfaces

Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.

Ethernet, USB 2.0, Wireless LAN


USB port

The device features a socket into which a USB cable can be plugged.




USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

3


Network


Network ready

Indicates whether the product is network-ready out of the box.




Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
00 Mbit/s


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

SNMPv3, SSL/TLS, EAP-PEAP, EAP-TLS, FIPS 140, HTTPS, IPSec


Mobile printing technologies

Apps etc. which allow users to send a print job from a smartphone or tablet to a printer via a wireless network.

Mopria Print Service, HP ePrint, Apple AirPrint, Google Cloud Print


Performance


Internal memory

The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

512 MB


Maximum internal memory

The maximum amount of memory inside a product, usually measured in bytes e.g megabytes (MB) or gigabytes (GB).
36 MB


Memory slots

Number and type of memory expansion slots, including connector and memory module descriptions.

1


Built-in processor

Whether or not a processor is built into the device.




Processor frequency

The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.
00 MHz


Sound pressure level (printing)

55 dB


Sound power level (printing)

6.9 dB


Design


Market positioning

Under which category can the device be positioned in the market, e.g. camera phone.

Business


Product colour

The colour e.g. red, blue, green, black, white.

White


Built-in display

A display which is part of the product, so you do not need to attach another display.




Display

The description of display that can includes display type, resolution, size etc.

LCD


Colour display




Display diagonal

Size of the display for this product, measured diagonally, usually in inches.

6.86 cm (2.7")


Control type

The way in which the device is controlled.

Buttons


Certification

CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032:2012 (EU) - Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU, Issue 6 Class A. Other EMC approvals as required by individual countries.



Power


Power consumption (printing)

601 W


Power consumption (ready)

7.6 W


Power consumption (PowerSave)

0.06 W


Power consumption (off)

0.06 W


Energy Star Typical Electricity Consumption (TEC)

1.257 kWh/week


AC input voltage

The voltage of the AC electricity that is inputted into the product.

220 - 240 V


AC input frequency

50/60 Hz


System requirements


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 7 Enterprise, Windows 7 Ultimate, Windows 7 Professional, Windows 7 Starter, Windows 7, Windows 8 Pro, Windows 8 Enterprise, Windows 8, Windows 8.1 Pro, Windows 8.1 Enterprise, Windows 8.1, Windows 10 Pro, Windows 10 Enterprise, Windows 10


Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.

Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, MacOS


Linux operating systems supported

8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)




Other operating systems supported

Android, iOS


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.
- 32.5 ?C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 40 ?C


Operating relative humidity (H-H)
- 80%


Sustainability


Sustainability compliance




Sustainability certificates

ENERGY STAR, Blue Angel


Sustainable technologies and materials

Mercury free


Doesn't contain

Mercury


Carbon footprint


Total carbon footprint (kg of CO2e)

The total mean carbon footprint value generated across various lifecycle stages (manufacturing, transportation / logistics, use and end of life) per unit (for one single product) i.e., measured in kilograms CO2e.
0


Carbon emissions, manufacturing (kg of CO2e)

The mean carbon emissions during the Manufacturing stage (i.e., emissions during raw material extraction and manufacturing of components (e.g., drives, graphics cards, memory, CPU, mainboards, etc.) or assembling of the product.
7


Carbon emissions, logistics (kg of CO2e)

The mean carbon emissions during the transportation of the product.

4


Carbon emissions, end-of-life (kg of CO2e)

The mean carbon emissions related to the End-of-Life processing of products.



Total carbon emissions, w/o use phase (kg of CO2e)

This is the total Carbon emissions minus the Use of product related emissions i.e., emissions across Manufacturing, Transportation and EOL only.



Weight & dimensions


Width

The measurement or extent of something from side to side.

418 mm


Depth

The distance from the front to the back of something.

376 mm


Height

The measurement of the product from head to foot or from base to top.

299 mm


Pallet dimensions (W x D x H)

Size of pallets (Width x Depth x Height) in millimeters.
00 x 1000 x 2481 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
.5 kg


Packaging data


Package width

The distance from one side of the packaging to the other.

497 mm


Package depth

The distance from the front to the back of the packaging.

398 mm


Package height

The distance from the top to the bottom of the packaging.

466 mm


Package weight

Weight of the packaged product.
.3 kg


Packaging content


Included cartridge capacity (black)

5 pages


Warranty card




Cables included

AC


Quick installation guide




Brand-specific features


HP ePrint




HP Auto-On/Auto-Off




HP Dynamic security

Cartridges with non-HP chips might not work today or in the future.




HP Security tools

Identity management: Kerberos authentication; LDAP authentication; 1000 user PIN codes; Optional HP and 3rd party advanced authentication solutions (e.g.: badge readers); Network: IPsec/firewall with Certificate; Pre-Shared Key and Kerberos authentication; Supports WJA-10 IPsec configuration Plug-in; 802.1X authentication (EAP-PEAP; EAP-TLS); SNMPv3; HTTPS; Certificates; Access Control List; Data: Storage Encryption; Encrypted PDF & Email (uses FIPS 140 validated cryptographic libraries from Microsoft); Secure Erase; SSL/TLS (HTTPS); Encrypted Credentials; Device: Security lock slot; USB port disablement; Hardware integration pocket for security solutions; Intrusion Detection with Red Balloon Security Technology - Constant in-device monitoring for attacks; SureStart Secure Boot - BIOS Integrity Checking with self-healing capability; Whitelisting - loads only known good code (DLLs, EXEs, ...); Connection Inspector - helps ensure network connections to device are safe; Security management: Compatible with HP JetAdvantage Security Manager; HP Printer Security Plugin for Microsoft SCCM; Device Security Syslog Messages processed and accessable in ArcSight, Splunk, and McAfee(ESM) SIEMs


HP GTIN (EAN/UPC) with options

(ABT) 192545078771; (ABU) 198415553829; (ABY) 192545078788; (ACQ) 192545078795; (B13) 192545078801; (B19) 192545078818; (BAZ) 192545078825


HP GTIN (EAN/UPC)
2545078771, 198415553829, 192545078788, 192545078795, 192545078801, 192545078818, 192545078825


Logistics data


Harmonized System (HS) code

84433210


Pallet gross weight

369.4 kg


Layers per pallet

5 pc(s)


Products per pallet

Quantity of a single product per pallet. If more than one product is packed per carton; this is the number of products (not number of cartons) per shipping pallet.

30 pc(s)


Technical details


Master (outer) cases per pallet layer

6 pc(s)


Compliance certificates

CECP


General Product Safety Regulation (GPSR) URL

https://support.hp.com/gb-en/product/setup-user-guides/hp-laserjet-enterprise-m507-series/model/19203856?sku=1PV87A ; https://h10032.www1.hp.com/ctg/Manual/c06187509.pdf ; https://h10032.www1.hp.com/ctg/Manual/c06187694.pdf


Other features


Recommended system requirements

2 GB available hard disk space; Internet connection; USB port; Internet browser; for additional OS hardware requirements. 2 GB available hard disk space; Internet connection or USB port; OS hardware requirements.


Recommended humidity operating range

Recommended range of relative humidity within which the product can operate.

30 - 70%


Recommended operating temperature range (T-T)
- 27 ?C


Custom media sizes

Tray 1: 76.2 x 127 to 215.9 x 355.6 mm; Tray 2: 105 x 148 to 215.9 x 355.6 mm; Optional 550 sheet Tray: 105 x 148 to 215.9 x 355.6 mm


Envelope feeder

Indicates whether this feature is available on this product and its capacity

No


Electromagnetic compatibility

List of countries and their respective regulatory agency standards with which the product complies.

CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032:2012 (EU) - Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU, Issue 6 Class A. Other EMC approvals as required by individual countries.


Compatible operating systems

List of desktop operating systems tested as compatible with this product.

Windows Client OS (32/64 bit), Win10, Win8.1, Win 8 Basic, Win8 Pro, Win8 Enterprise, Win8 Enterprise N, Win7 Starter Edition SP1, UPD Win7 Ultimate, Mobile OS, iOS, Android, Mac, Apple macOS Sierra v10.12, Apple macOS High Sierra v10.13, Apple macOS Mojave v10.14, Discrete PCL6 Printer Driver, For more information on the supported operating systems go to http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name) - User Guide, Search for the Supported Operating Systems section, UPD PCL6 / PS Printer Drivers, Supported Operating systems, For more information on the supported operating systems see http://www.hp.com/go/upd


Pallet dimensions (W x D x H) (imperial)
98.9 x 1000.8 x 2481.6 mm (47.2 x 39.4 x 97.7")


Pallet weight (imperial)

369.4 kg (814.3 lbs)


Acoustic power emissions (ready)

39 dB


Acoustic pressure emissions bystander (ready)

25 dB


Typical electricity consumption (TEC) number

Blue Angel: 1.257 kWh/Week; Energy Star 3.0: 0.420 kWh/Week


UNSPSC-code

43212105


Box contents

HP LaserJet Enterprise M507dn Printer; HP Original LaserJet Toner Cartridge (5,000 pages); Regulatory flyer (CD replacement); Unpack flyer; Installation guide; Power cord; Warranty cards; Support flyers/number list


Printing

Producing a paper copy of information stored on a computer.

Mono printing


Processor frequency

The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.

1.2 GHz


Manufacturer warranty

One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements. Contact your Contractual Vendor or go to http://www.hp.com/support to learn about HP award winning service and support options in your region.
