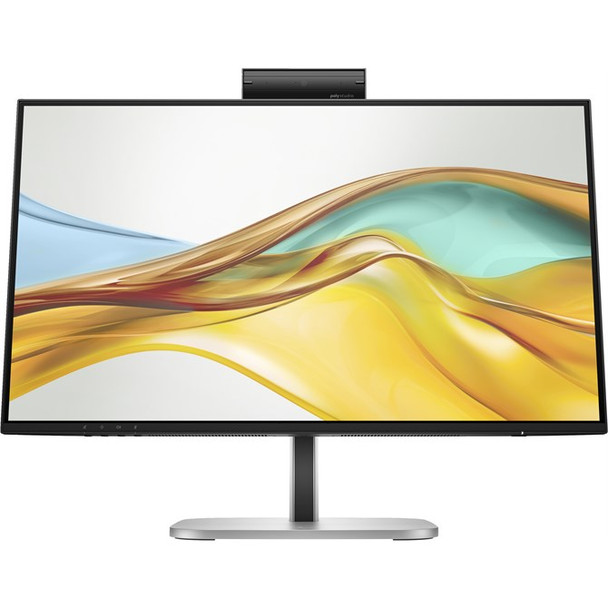

HP Series 5 Pro 23.8 " FHD USB-C Conferencing Monitor - 524pm 9E0G9UT#ABU

Conferencing made remarkable with AI
Feel confident collaborating effortlessly with the HP Series 5 Pro 23.8" FHD USB-C Conferencing Monitor. Achieve distraction-free meetings, wherever you work, with advanced AI. Settle into total comfort thanks to a customizable setup.

Specs




Display


Display diagonal

Size of the display for this product, measured diagonally, usually in inches.

60.5 cm (23.8")


Display resolution

The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width - height, with the units in pixels: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
20 x 1080 pixels


HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

Full HD


Native aspect ratio

The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
:9


Display technology

The technology used in the display e.g. plasma, LED.

LCD


Panel type

IPS


LED backlight

A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display.




Backlight type

Edge LED


Touchscreen

A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.




Display brightness (typical)

Display brightness, measured by its Luminance, presented as a figure in nits. Typical brightness ratings for monitors range from 250 to 350 nits with a target value of between 80 to 120 nits being suitable for most displays in a normal viewing environment.

350 cd/m?


Display brightness

Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.

350 cd/m?


Response time

The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)

5 ms


Response time measurement type

GTG (Gray to Gray)


Display surface

Matt


Anti-glare screen

Always gives an optimal view, even in direct sunlight.




Screen shape

Flat


Supported graphics resolutions

The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
24 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)


Aspect ratio

The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV.
:9


Contrast ratio (typical)

The difference in light intensity between the brightest white and the darkest black.
00:1


Contrast ratio (dynamic)

A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.
000000:1


Maximum refresh rate
0 Hz


Viewing angle, horizontal

Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
8?


Viewing angle, vertical

Maximum vertical angle at which a display can be viewed with acceptable visual performance.
8?


Display number of colours
.7 million colours


Response time (fast)

5 ms


Pixel pitch

This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.

0.27 x 0.27 mm


Pixel density

93 ppi


Horizontal scan range

30 - 115 kHz


Vertical scan range

50 - 100 Hz


Viewable size, horizontal

The viewable size is often somewhat smaller than the actual size of a monitor, because there is a border around the image.

52.7 cm


Viewable size, vertical

29.6 cm


Viewable size diagonal

6.05 cm


Display diagonal (metric)

This is the size of the display screen, measured diagonally.

60.5 cm


Haze rate

25%


Surface hardness

3H


Colour depth

8 bit


Colour gamut standard

sRGB


Colour gamut
0%


sRGB coverage (typical)
0%


Display bezel technology

Micro-Edge


Performance


NVIDIA G-SYNC




AMD FreeSync

The product includes AMD Freesync Technology for the dynamic synchronization of the graphic card and the monitor in order to avoid screen tearing.




Fast charging




Flicker-free technology




Low Blue Light technology




HP segment

Business


Infrared (IR) sensor




Multimedia


Number of speakers

The quantity of speakers included in/with the product.

4


RMS rated power

RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.
W


Built-in speaker(s)

The device contains speaker(s) to produce sound.




Megapixel (approx.)

The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card.

5 MP


Built-in microphone

Microphone that is found inside the product.




Built-in camera

The product has an integrated camera.




Design


Market positioning

Under which category can the device be positioned in the market, e.g. camera phone.

Business


Product colour

The colour e.g. red, blue, green, black, white.

Black


Colour name

Jet black


Detachable stand




Feet colour

The colour of the feet, which are the projecting part on which a device/piece of furniture, or each of its legs, stands.

Silver, Black


Ports & interfaces


Built-in USB hub

Whether or not the device features a USB hub to connect more than one other device via USB.




USB hub version

3.2 Gen 1 (3.1 Gen 1)


Number of USB Type-B upstream ports quantity

1


USB Type-A downstream ports quantity

3


USB Type-C downstream ports quantity

1


USB Type-C DisplayPort Alternate Mode




USB Power Delivery (USB PD)




USB Power Delivery up to
0 W


HDMI

HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.




HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


HDMI version

2.0



Ports & interfaces


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

1


DisplayPort out quantity

1


DisplayPort out version

1.4


DisplayPort version

1.4


Audio input

The type of audio input that the device requires, and the connection needed.




Audio output

The type of audio output that the device produces, and the connector(s).




Headphone out

The socket for connecting headphones to the device.




Headphone outputs

Number of sockets /ports where headphones are connected.

1


Headphone connectivity

How headphones connect to a device e.g. wirelessly or via a cable and connector.

3.5 mm


Built-in KVM switch




HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Remotely operated

The device can be controlled by remote control, which is a device that controls an apparatus by means of radio or infrared signals.




Ergonomics


VESA mounting




Panel mounting interface

The product can be used wih VESA mounting interfaces.
0 x 100 mm


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Height adjustment

The part of the device that can be adjusted to change the height.




Adjustable height (max)
cm


Pivot




Pivot angle

-90 - 90?


Swivelling




Swivel angle range

-45 - 45?


Tilt adjustment

The tilt, which means the angle at which the device is pointing (up or down), can be changed.




Tilt angle range

-5 - 23?


On Screen Display (OSD)




Power


Energy efficiency class (SDR)

D


Energy efficiency class (HDR)

D


Energy consumption (SDR) per 1000 hours
kWh


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

33 W


Power consumption (standby)

The amount of electricity that is consumed when the product is on standby.

0.5 W


Power consumption (max)

The maximum amount of power used by the device.

223 W


Power consumption (off)

0.3 W


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50/60 Hz


Power supply type

The type of power supply which this product uses.

Internal


Energy efficiency scale

A to G


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

5 - 35 ?C


Operating relative humidity (H-H)

5 - 95%


Storage relative humidity (H-H)
- 80%


Weight & dimensions


Width (with stand)

539.4 mm


Depth (with stand)
9.5 mm


Height (with stand)

503.2 mm


Weight (with stand)

9.5 kg


Width (without stand)

212.4 mm


Depth (without stand)
.6 mm


Height (without stand)
3.7 mm


Weight (without stand)

4.99 kg


Packaging data


Package width

The distance from one side of the packaging to the other.

621 mm


Package depth

The distance from the front to the back of the packaging.
0 mm


Package height

The distance from the top to the bottom of the packaging.

393 mm


Package weight

Weight of the packaged product.

9.5 kg


Package type

The type of product package e.g. box.

Box


Warranty card




Packaging content


Cables included

DisplayPort, USB Type-A to USB Type-B, USB Type-C to USB Type-C, AC


Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Bundled software

Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.

HP Display Center; HP Client Management Script Library


Sustainability


Sustainability certificates

ENERGY STAR, EPEAT, TCO


Other features


Country of origin

Country where the device is made. Aka Country of manufacture (COM).

China, Thailand


UNSPSC-code

43211902


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

9.5 kg


Compliance certificates

CECP, CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI


Manufacturer warranty

HP three-year limited warranty


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Certification

Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL; CEL Grade 1; cTUVus; EAC; FCC; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; California Energy Commission (CEC); UAE; TGM; Ukraine certificates; T?V Flicker free certified; NRCS; PSE; GS; Ukraine EE; T?V Low Blue Light Hardware Solution certified; Korea MEPS; Australian-New Zealand DoC; EMF


Brand-specific features


HP GTIN (EAN/UPC)
8122901920


Technical details


Box contents

Monitor; DisplayPort- cable; Warranty card; USB Type-A to B cable; Quick Setup Poster; 1 USB Type-C to Type-C cable; AC power cord
