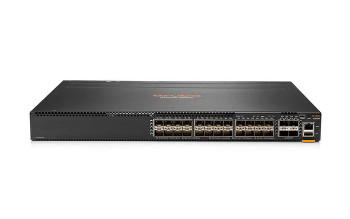

Hpe Cx 6300 6300M 24 Ports Manageable Ethernet Switch 3 Layer Supported Modular JL658A

HPE CX 6300 6300M 24 Ports Manageable Ethernet Switch - 3 Layer Supported - Modular - Optical Fiber - 1U - Rack-mountable The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation and core. Created for game- changing operational efficiency with built-in security and resiliency, the 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications. Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today's enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer. A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow's applications. The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization. Modular power supplies and field replaceable fans are also supported. Aruba Dynamic Segmentation extends Aruba's foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
Management & Protocols

ManageableYes

Network & Communication

Layer Supported3

Power Description

Power SourcePower Supply
Redundant Power Supply SupportedYes

I/O Expansions

Expansion Slot TypeSFP+
Number of SFP+ Slots24
Total Number of Expansion Slots28.0

Media & Performance

Network Technology10GBase-X
50GBase-X
Ethernet Technology10 Gigabit Ethernet
50 Gigabit Ethernet
Media Type SupportedOptical Fiber

Interfaces/Ports

ModularYes
Uplink PortYes
Stack PortYes
Total Number of Network Ports24
Port/Expansion Slot Details24 x 10 Gigabit Ethernet Expansion Slot
4 x 50 Gigabit Ethernet Uplink


Physical Characteristics

Weight (Approximate)5.80 kg
Form FactorRack-mountable
Height44 mm
Width442 mm
Depth385 mm
Compatible Rack Unit1U

General Information

Product TypeEthernet Switch
Manufacturer Part NumberJL658A
Manufacturer Website Addresshttp://www.hpe.com
ManufacturerHewlett Packard Enterprise
Product Model6300M
Product Name6300M 24-port SFP+ and 4-port SFP56 Switch
Product SeriesCX 6300
Brand NameHPE
