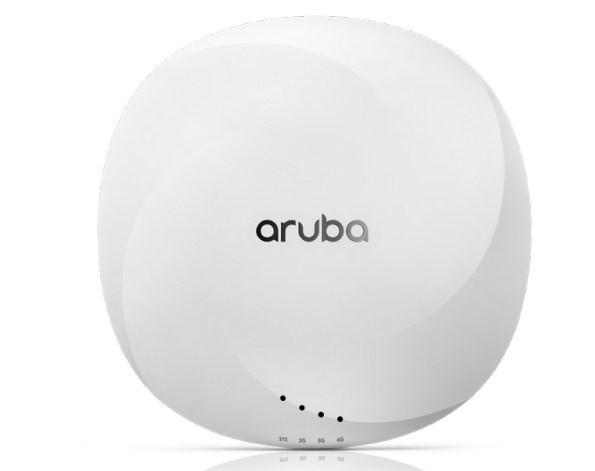

HPE Networking AP-634-RW 2500 Mbit/s White Power over Ethernet PoE S1G49A

HPE Aruba Networking 630 Series Campus Access Points are designed to take advantage of the 6 GHz band using three radios for comprehensive tri-band coverage. With 6 GHz, wireless capacity is more than doubled, allowing enterprises to meet needs today and plan for future growth. The Wi-Fi 6E APs allow countries to take advantage of Wi-Fi 6E once it is approved in country through automated notification and easy deployment of 6 GHz regulatory tables. The 630 series delivers a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds for fixed low power indoor (LPI) use. With up to seven 160 MHz channels, the 630 series increases performance for low-latency, bandwidth-hungry applications. The ultra tri-band (UTB) filtering eliminates interference between 5 GHz and 6 GHz and prevents gaps in channel coverage. To ensure high availability, the 630 series includes dual port hitless failover for Ethernet and power.

What is new supporting point:Wider channels and less interference to deliver faster speeds for low-latency, bandwidth-hungry applications like high-definition video and augmented reality / virtual reality
Unique filtering capabilities to mitigate gaps in coverage and help minimize interference between the 5 GHz and 6 GHz bands
High availability with hitless failover for Ethernet and power to help ensure business continuity
Automated notification and easy deployment of 6 GHz regulatory tables to allow countries to take advantage of Wi-Fi 6E, once it is approved in the country
Three radios to extend the benefits of Wi-Fi 6E to the 6 GHz band accessing up to 1200 MHz of spectrum

Specs




Features


2.4 GHz




5 GHz




6 GHz




Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.

2500 Mbit/s


Maximum data transfer rate (2.4 GHz)
00 Mbit/s


Maximum data transfer rate (5 GHz)

2500 Mbit/s


Maximum data transfer rate (6 GHz)
00 Mbit/s


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
00 Mbit/s


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11ax, IEEE 802.15.4


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




MIMO




Security


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

AES, TKIP, WPA, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enterprise


Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1



Power


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Design


Placement

Where the product can be placed e.g. floor, wall.

Ceiling, Pole, Wall


Product colour

The colour e.g. red, blue, green, black, white.

White


Antenna


Antenna type

Type of antenna, also known an aerial, e.g. external, internal.

External


Antenna connector type

The way in which the antenna is connected to the device e.g. coaxial.

RP-SMA


Certificates


Compliance certificates

Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)


Certification

None


Weight & dimensions


Width

The measurement or extent of something from side to side.

220 mm


Depth

The distance from the front to the back of something.

50 mm


Height

The measurement of the product from head to foot or from base to top.

220 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.3 kg
