Hewlett Packard Enterprise

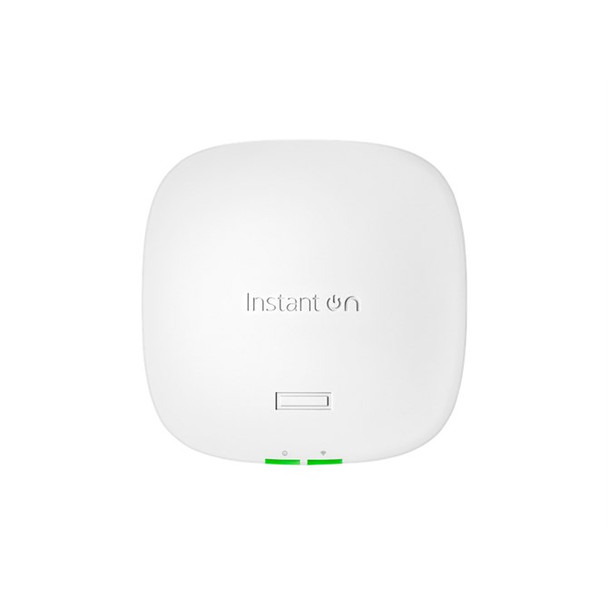

HPE S1T23A wireless access point 2400 Mbit/s White Power over Ethernet PoE S1T23A
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- S1T23A
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
The HPE Networking Instant On Access Point AP32 is a Wi-Fi CERTIFIED 6E- wireless access point built to bring future-ready connectivity to small and medium businesses. The AP32 supports the new 6E wireless protocol that broadcasts on the 6 GHz band, which is reserved for Wi-Fi 6E-enabled devices, and offers higher capacity and capability for the devices. This higher capacity needs a strong backhaul, so the AP32 comes with a 2.5 GbE uplink port and PoE to make connectivity and power easy. With a 2x2 antenna array supporting 2 spatial streams, the AP32 provides robust connectivity for up to 75 devices and 2.8 Gbps of wireless throughput. In the HPE Networking Instant On mobile app, choose to broadcast the 5 GHz and 6 GHz bands to achieve faster throughput speed, or switch to 2.4 GHz and 6 GHz for impressive range for modern laptops or smartphones.
What is new supporting point:Wi-Fi CERTIFIED 6E- support for up to 75 user devices.
2.5 Gigabit Ethernet uplink port that relieves bottlenecks brought by bandwidth-intense applications.
6 GHz band dedicated to Wi-Fi 6E-enabled devices with up to 2.4 Gbps wireless throughput.
The modern minimal design blends the HPE Networking Instant On AP32 into any environment. Enable quiet mode to disable lights for less distraction.
Keep your network protected with the HPE Networking Instant On Instant On mobile app or web portal, cloud-connected so you can manage or troubleshoot problems anywhere in the world.
Specs
Features
2.4 GHz
5 GHz
6 GHz
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
2400 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
00 Mbit/s
Maximum data transfer rate (6 GHz)
2400 Mbit/s
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
2500 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11ax
Number of users
The number of people that use or can use this product.
75 user(s)
MIMO
MIMO type
Multi User MIMO
Security
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
OWE, WPA2, WPA3
Management features
Web-based management
Using a website/web application to manage something.
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
1
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Power
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
DC voltage range
V
Power
Power consumption (max)
The maximum amount of power used by the device.
.9 W
Design
Placement
Where the product can be placed e.g. floor, wall.
Ceiling, Wall
Product colour
The colour e.g. red, blue, green, black, white.
White
Cable lock slot
Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type
Kensington
LED indicators
Reset, Status
Antenna
Antenna type
Type of antenna, also known an aerial, e.g. external, internal.
Internal
Antenna direction type
Omni-directional
Antennas quantity
2
Antenna gain level (max)
Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
4.5 dBi
Certificates
Certification
None
Weight & dimensions
Width
The measurement or extent of something from side to side.
0 mm
Depth
The distance from the front to the back of something.
39 mm
Height
The measurement of the product from head to foot or from base to top.
0 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
520 g
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 -C
View AllClose
What is new supporting point:Wi-Fi CERTIFIED 6E- support for up to 75 user devices.
2.5 Gigabit Ethernet uplink port that relieves bottlenecks brought by bandwidth-intense applications.
6 GHz band dedicated to Wi-Fi 6E-enabled devices with up to 2.4 Gbps wireless throughput.
The modern minimal design blends the HPE Networking Instant On AP32 into any environment. Enable quiet mode to disable lights for less distraction.
Keep your network protected with the HPE Networking Instant On Instant On mobile app or web portal, cloud-connected so you can manage or troubleshoot problems anywhere in the world.
Specs
Features
2.4 GHz
5 GHz
6 GHz
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
2400 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
00 Mbit/s
Maximum data transfer rate (6 GHz)
2400 Mbit/s
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
2500 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11ax
Number of users
The number of people that use or can use this product.
75 user(s)
MIMO
MIMO type
Multi User MIMO
Security
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
OWE, WPA2, WPA3
Management features
Web-based management
Using a website/web application to manage something.
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
1
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Power
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
DC voltage range
V
Power
Power consumption (max)
The maximum amount of power used by the device.
.9 W
Design
Placement
Where the product can be placed e.g. floor, wall.
Ceiling, Wall
Product colour
The colour e.g. red, blue, green, black, white.
White
Cable lock slot
Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type
Kensington
LED indicators
Reset, Status
Antenna
Antenna type
Type of antenna, also known an aerial, e.g. external, internal.
Internal
Antenna direction type
Omni-directional
Antennas quantity
2
Antenna gain level (max)
Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
4.5 dBi
Certificates
Certification
None
Weight & dimensions
Width
The measurement or extent of something from side to side.
0 mm
Depth
The distance from the front to the back of something.
39 mm
Height
The measurement of the product from head to foot or from base to top.
0 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
520 g
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 -C
