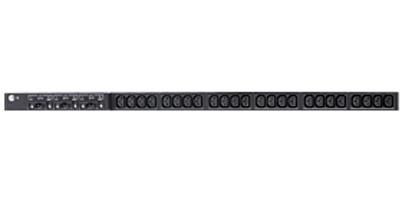

IBM 46M4131-RFB 0U 24 C13 32A PDU 46M4131-RFB

The IBM 0U Power Distribution Units (PDU) are space-efficient, outlet-dense, and provide the most cost-effective power distribution. The 32 A single-phase IBM 46M4131 features 24 IEC-320-C13 (10 A) receptacles and is ideal for entry-level configurations.

Design



PDU types



Basic


Product colour



Black


Rack capacity



0U


Features



Cable length



3 m


Certification



EN55024:2003; IEC 6100-4-2, -3, -4, -5, -6, -8, -11


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



10 - 55 °C


Package dimensions



Gross Weight (Package, kg)



5 kg


Ports & interfaces



AC outlet types



C13 coupler


AC outlets quantity



24 AC outlet(s)


Power plug



IEC 60309


Power



AC input frequency



50 - 60 Hz


Maximum current



32 A


Nominal input voltage



220-240 V


Nominal output voltage



220-240 V


Output voltage



32 V


Product dimensions



Net Weight (Product, kg)



4.9 kg


Vendor information



Brand Name


IBM


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



85 x 900 x 44.5 mm
