Intel

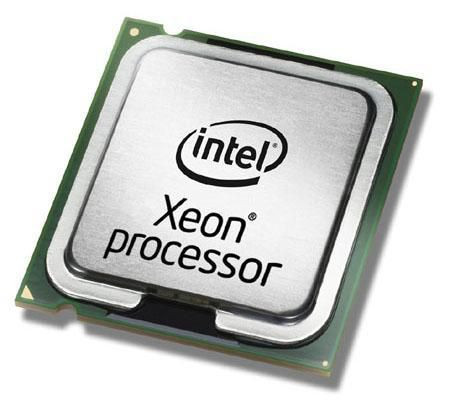

Intel EU80574KJ080N-RFB E5450 CPU EU80574KJ080N-RFB
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- EU80574KJ080N-RFB
- Condition:
- Refurbished
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Enhanced Intel SpeedStep� Technology
Enhanced Intel SpeedStep� Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep� Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep� Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
Thermal Monitoring Technologies
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits
Execute Disable Bit
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.
Features
Commodity Classification Automated Tracking System (CCATS)
NA
Embedded options available
No
Execute Disable Bit
Yes
Export Control Classification Number (ECCN)
3A991.A.1
Harmonized System (HS) code
8542310001
Idle States
Yes
Images Type Map
Market segment
Server
Number of Processing Die Transistors
820 M
Processing Die size
214 mm�
Thermal Monitoring Technologies
Yes
Logistics data
Harmonized System (HS) code
8542310001
Operational conditions
Tcase
67 �C
Package dimensions
Gross Weight (Package, kg)
1.2 kg
Power
Thermal Design Power (TDP)
80 Watt
Processor
Box
No
Bus type
FSB
Component for
Server/workstation
Cooler included
No
CPU multiplier (bus/core ratio)
9
FSB Parity
Yes
Processor ARK ID
33083
Processor base frequency
3 GHz
Processor cache
12 MB
Processor cache type
L2
Processor cores
4
Processor family
Intel� Xeon�
Processor frequency
3 GHz
Processor front side bus
1333 MHz
Processor lithography
45 nm
Processor manufacturer
Intel
Processor model
E5450
Processor operating modes
64-bit
Processor series
Intel Xeon 5400 Series
Processor socket
LGA 771 (Socket J)
Processor threads
4
Thermal Design Power (TDP)
80 Watt
VID Voltage Range
0.85 - 1.35 V
Processor special features
Conflict-Free processor
No
Enhanced Intel SpeedStep Technology
Yes
Intel 64
Yes
Intel Demand Based Switching
Yes
Intel Enhanced Halt State
Yes
Intel Trusted Execution Technology
No
Intel Virtualization Technology (VT-x)
Yes
Intel VT-x with Extended Page Tables (EPT)
No
Intel� Hyper Threading Technology (Intel� HT Technology)
No
Intel� Turbo Boost Technology
No
Product dimensions
Net Weight (Product, kg)
1 kg
Technical details
Bus bandwidth
1333
Bus speed
1333 MHz
Bus type units
MHz
Last change
63903513
Launch date
Q4'07
Processor brand name
Intel Xeon
Processor cache
12288 KB
Product family
Intel Xeon Processor 5000 Sequence
Product type
Processor
Status
Discontinued
Vendor information
Brand Name
Intel
Warranty
1 Year(s)
Weight & dimensions
Processor package size
37.5 x 37.5 mm
