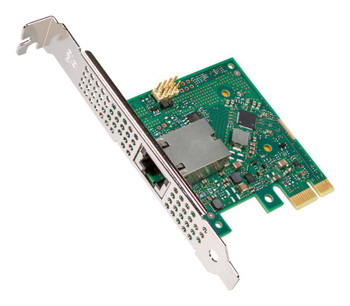

Intel I226-T1. Internal. Connectivity Technology: Wired Host Interface: Pci Expr I226T1BLK

Intel I226-T1. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Green, Silver The Intel?- Ethernet Network Adapter I226-T1 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. These systems require more bandwidth than ever before. This ultra-compact, easy-to-integrate PCIe 3.1 x1 adapter, is a cost-effective networking solution for speeds up to 2.5GbE. The I226-T1 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption. Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms. Based on the Intel?- Ethernet Controller I226-LM, this versatile networking solution supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with autonegotiation between port speeds provides maximum flexibility.
Network & Communication

Network Technology2.5GBase-T

Media & Performance

Maximum Data Transfer Rate2.50 Gbit/s
Media Type SupportedTwisted Pair

General Information

Product Type2.5Gigabit Ethernet Adapter
Manufacturer Part NumberI226T1BLK
Manufacturer Website Addresshttp://www.intel.co.uk
ManufacturerIntel Corporation
Product NameEthernet Network Adapter I226-T1
Package TypeBulk
Product SeriesI226
Brand NameIntel


Physical Characteristics

Form FactorPlug-in Card
Bracket HeightLow Profile and Full Height

Technical Information

Chipset ManufacturerIntel
Chipset ModelI226-LM

Interfaces/Ports

Host InterfacePCI Express 3.1 x1
Number of Network (RJ-45) Ports1
Total Number of Ports1

Miscellaneous

Application/UsageNetwork
Device SupportedWorkstation
Computer
