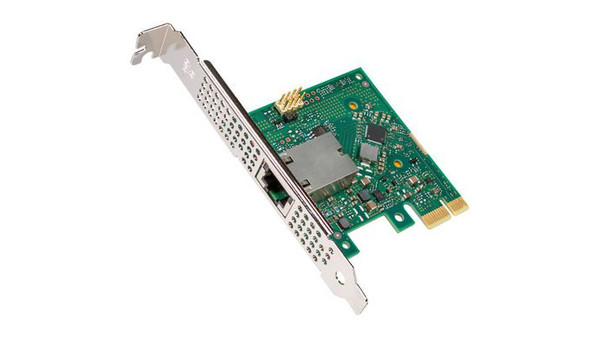

Intel I226T1 ETHERNET ADAPTER I226-T1 I226T1

The Intel� Ethernet Network Adapter I226-T1 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. These systems require more bandwidth than ever before. This ultra-compact, easy-to-integrate PCIe 3.1 x1 adapter, is a cost-effective networking solution for speeds up to 2.5GbE. The I226-T1 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption.
Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms.
Based on the Intel� Ethernet Controller I226-LM, this versatile networking solution supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with autonegotiation between port speeds provides maximum flexibility.

Design



Component for



PC/Server


Internal



Yes


LED indicators



Activity, Link


Product colour



Green, Silver


Logistics data



Harmonized System (HS) code



8517620090


Network



Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000, 2500


Jumbo frames support



Yes


Maximum data transfer rate



25000 Mbit/s


Maximum operating distance



100 m


Networking standards



IEEE 802.3, IEEE 802.3x, IEEE 802.3z


Wi-Fi



No


Operational conditions



Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-40 - 70 �C


Other features



Cabling type



CAT5e, CAT6, CAT6A


Ethernet adapter ARK ID



225771


Export Control Classification Number (ECCN)



5A991.B.4.A


Launch date



Q3'23


Market segment



Desktop


Network interface card cable medium



Copper


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Host interface



PCI Express


Interface



Ethernet


PCI Card form factor



Full-height (low-profile)


PCI version



3.1


Power



Power consumption (typical)



1.4 Watt


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



6.53 cm


Product Width



6.87 cm


Sustainability



Sustainability certificates



BSMI, CE, Federal Communications Commission (FCC), KCC, RoHS, VCCI


Sustainability compliance



Yes


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
