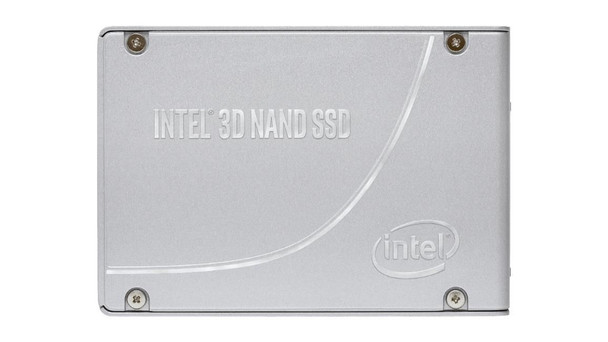

Intel SSDPE2KX010T801 Internal Solid State Drive SSDPE2KX010T801

Cloud Inspired. Storage Optimized.
The DC P4510 meets the requirements of the modern data center. It significantly increases server agility and utilization, and accelerates applications across a wide range of workloads.

Do More Per Server
Intel�s 64-layer, TLC, 3D NAND technology enables the DC P4510 to double the capacity available compared to its predecessor, the DC P4500. This increased density is key to supporting broader cloud workloads, allowing cloud service providers to increase users and improve data service levels.

Optimized QoS, Bandwidth, and Performance
With the increased density of Intel 64-layer 3D NAND and enhanced firmware features, the DC P4510 is built to handle read-intensive workloads and beyond. The DC P4510 creates greater Quality of Service, bandwidth, and performance to lead data centers through their evolving transformation.

Minimize Service Disruptions
Enhanced SMART monitoring of the drive health and status coupled with industry-leading end-to-end data path protection and power loss imminent (PLI) features ensures telemetry information without disrupting ongoing I/Os.

Brand-specific features



Intel� Rapid Start Technology



No


Intel� Remote Secure Erase



No


Intel� Smart Response Technology



No


Features



Commodity Classification Automated Tracking System (CCATS)



G162706


Component for



Server/workstation


End-to-End Data Protection



Yes


Enhanced Power Loss Data Protection technology



Yes


Export Control Classification Number (ECCN)



5A992C


Hardware encryption



Yes


Interface



PCI Express 3.1


Market segment



Server


Mean time between failures (MTBF)



2000000 Hour


Memory type



TLC 3D NAND


NVMe



Yes


PCI Express interface data lanes



x4


Random latency - read (up to)



95 �s


Random latency - write (up to)



25 �s


Random read (100% span)



465000 IOPS


Random write (100% span)



70000 IOPS


Read latency



77 �s


Read speed



2850 MB/s


Security algorithms



256-bit AES


SSD ARK ID



122573


SSD capacity



1 TB


SSD form factor



U.2


SSD temperature monitoring



Yes


SSD usage tag



Data center


TBW rating



1920


Write latency



18 �s


Write speed



1100 MB/s


Logistics data



Harmonized System (HS) code



84717070


Operational conditions



Maximum operating temperature



70 �C


Non-operating shock



1 kg


Non-operating vibration



3.13 G


Operating / non-operating shock



1000G (0.5ms)


Operating shock



1 kg


Operating temperature (T-T)



0 - 70 �C


Operating vibration



2.17 G


Other features



Drive capacity



1 TB


Last change



63903513


Launch date



Q3'17


Power consumption (active)



10 Watt


Product codename



Cliffdale Refresh


Product colour



Silver


Product family



Data center SSD


Product series



Intel� SSD DC P4510 Series


Sequential reading



2850 MB/s


Sequential writing speed



1100 MB/s


SSD endurance rating



1.92 PBW


SSD hardware encryption



AES 256 bit


SSD power consumption (active)



10


SSD power consumption (idle)



5W


SSD shock



1000G (0.5ms)


SSD weight



139 g


Status



Launched


Package dimensions



Gross Weight (Package, kg)



0.13 kg


Power



Power consumption (idle)



5 Watt


Power consumption (read)



10 Watt


Product dimensions



Net Weight (Product, kg)



0.1 kg


Vendor information



Brand Name


Intel


Warranty



1 Year(s)
