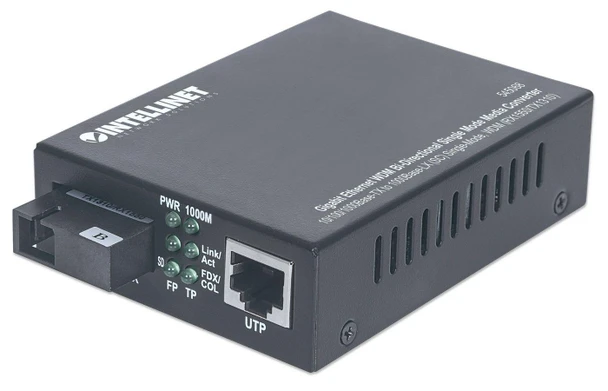

Intellinet 545068 Gigabit Ethernet Wdm 545068

The Intellinet Network Solutions Gigabit Ethernet WDM (bi-directional wavelength division multiplexing) Media Converter utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1550/1310 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without digging in a second fibre cable. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.

Expands the Size of an Existing Network
This converter Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with the installation of additional routers.

Enhances the Distance between Networking Devices
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device.

Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wallmount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.

Design



Certification



FCC Class A, CE


Housing material



Metal


Internal



No


LED indicators



Y, Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Network



Auto MDI/MDI-X



Yes


Cable types supported



Cat5


Converter input interface



10Base-T, 100Base-TX, 1000Base-TX


Converter output interface



1000Base-LX


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-TX


Duplex system



Full


Ethernet interface type



Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000


Fiber ethernet cabling technology



1000BASE?LX


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



10 - 80 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.23 kg


Packaging content



AC adapter included



Yes


Manual



Yes


Performance



Fiber cable diameters supported (core/cladding)



8.3/125, 8.7/125, 8/125, 10/125


Fiber mode structure



Single-mode


Maximum transfer distance



20000 m


Mean time between failures (MTBF)



100000 Hour


Sensitivity



-22 dBmW


Tx power (max)



-3 dBmW


Tx power (min)



-8 dBmW


Wavelength-division multiplexing (WDM)



Yes


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SC


Fiber ports quantity



1


Power



External power adapter



Yes


Output current



1.2 A


Output voltage



5 V


Power consumption (max)



5 Watt


Product dimensions



Net Weight (Product, kg)



0.18 kg


Product Depth



10.5 cm


Product Height



2.5 cm


Product Width



6.9 cm


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
