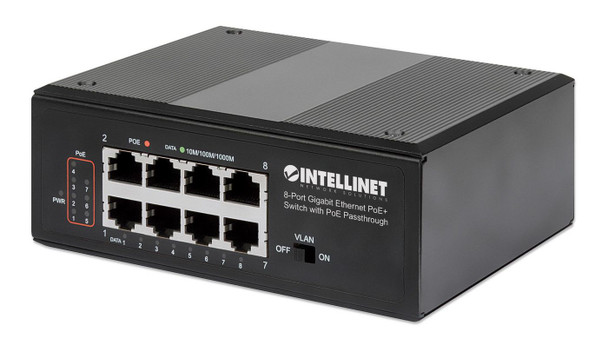

Intellinet 561624 Network Switch Gigabit 561624

The PoE Passthrough Industrial Switch � Save installation costs with PoE and get the most out each PoE connection
The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough is designed to take power from a PoE switch or injector and pass both data and electrical power to PoE-compatible devices via network cables. Its PD port even supports power input from the latest Ultra PoE sources, easily handling up to 95 W. Equipped with eight Gigabit Ethernet ports, this switch can power up to seven wireless LAN access points and bridges, VoIP phones or IP video cameras and deliver network speeds up to 1,000 Mbps without an external power adapter.

Usable as a PoE extender
Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using the PoE Passthrough Switch this way also eliminates the time and expense of electrical rewiring, which minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls. This Switch can also accept power through a DC power adapter or an industrial power supply, providing up to 120 W to compatible devices.

Ideal for harsh industrial environments
With its rugged, protective metal housing, the switch operates reliably and quietly, even in extreme temperatures from -20 to 75? (-4 � 167�F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features, this switch is ideal for IoT applications in Industry 4.0 and more.

Data transmission



Jumbo frames



9200


Jumbo frames support



Yes


MAC address table



4000 entries


Packet forwarding rate (1 Gbps)



1488000 pps


Packet forwarding rate (10 Mbps)



14880 pps


Packet forwarding rate (100 Mbps)



148800 pps


Store-and-forward



Yes


Switching capacity



16 Gbit/s


Design



Certification



FCC B, CE, RoHS


DIN rail mounting



Yes


LED indicators



Activity, Link, PoE, Power


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-sensing



Yes


Cable types supported



Cat5e


Flow control support



Yes


Full duplex



Yes


MAC address auto-aging supported



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



-20 - 75 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 75 �C


Package dimensions



Gross Weight (Package, kg)



1.17 kg


Packaging data



User guide



Yes


Performance



Fanless



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


DC input voltage



48 - 57 V


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



30 Watt


Total Power over Ethernet (PoE) budget



120 Watt


Product dimensions



Net Weight (Product, kg)



0.9 kg


Product Depth



10.8 cm


Product Height



5 cm


Product Width



13.8 cm


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
