Intellinet

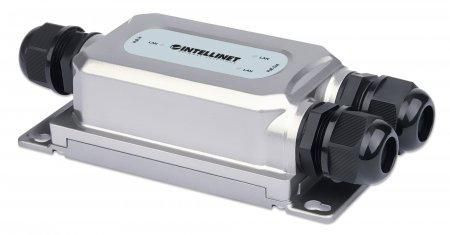

Intellinet 561648 2-Port Outdoor Vandalproof 561648
(No reviews yet)
Write a Review
- UPC:
- 0766623561648
- MPN:
- 561648
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
This PoE++ Extender doubles the range of two Gigabit Power over Ethernet connections � even in harsh outdoor conditions
The Intellinet Network Solutions 2-Port Outdoor Vandalproof Gigabit PoE++ Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to one or two output devices via Cat5e or Cat6 cable. This PoE++ (4PPoE) extender does not need an additional power supply since it draws its power from the PoE input.
Designed for Outdoor Use
This PoE++ extender is the right power and data connector for its suitability to a wide variety of environments. Its weatherproof IP67 (waterproof and dustproof) rating, vast operating temperature range of -20 � 60�C (-4 � 140�F) and vandal-proof IK10 score make the Intellinet Network Solutions 2-Port Outdoor Vandalproof Gigabit Ultra PoE Extender able to withstand harsh conditions.
Reduced Wiring Costs
This Ultra PoE Extender helps avoid the expense of running AC power lines for a wireless access point, network camera, IP phone, or other compatible device. Simply connect the PoE Extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.
Power over Ethernet 802.3bt Compliant
This Ultra PoE Extender supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input of 95 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.).
Simple Installation
This PoE Extender was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its PoE In port to your PoE injector or PoE switch and to connect the PoE Out ports to the PoE devices you want to connect (e.g., a VoIP phone and a PoE network camera).
Design
Certification
FCC Class A, CE, RoHS
Product colour
Grey
Logistics data
Harmonized System (HS) code
85176990
Network
Cabling technology
10/100/1000Base-T(X)
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
-20 - 60 �C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 80 �C
Package dimensions
Gross Weight (Package, kg)
0.9 kg
Performance
Cable types supported
Cat5e
International Protection (IP) code
IP67
MAC address table
2048 entries
Type
Network repeater
Ports & interfaces
Ethernet LAN (RJ-45) ports
3
Power over Ethernet (PoE) ports quantity
2
Power
Power over Ethernet (PoE)
Yes
Product dimensions
Net Weight (Product, kg)
0.69 kg
Product Depth
15 cm
Product Height
4.4 cm
Product Width
7.3 cm
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Intellinet
Warranty
1 Year(s)
