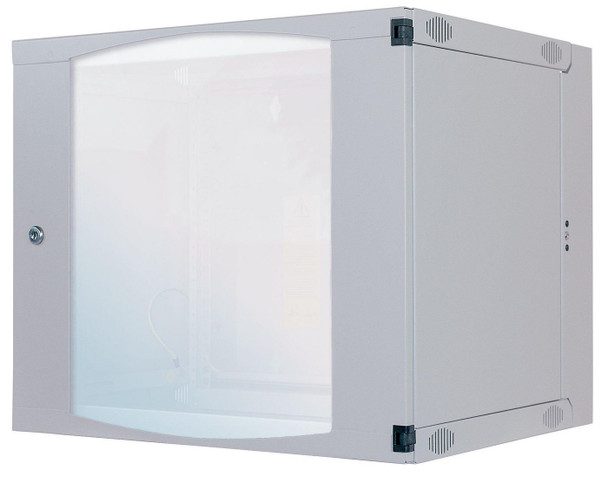

Intellinet 713856 19" Double Section Wallmount 713856

The Intellinet Network Solutions wallmount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition � get the completely assembled cabinet delivered or save space and money with the flatpack version._x000D_
_x000D_
In terms of housing, you can choose from among the extra-compact 10? cabinets and numerous 19? versions, with installation depths that range from 300 to 600 mm. With heights from 6 to 20 units in black (RAL9005) or grey (RAL7035), we offer you a solution for every need. The removable side panels, the lockable tempered glass-door that can be opened more than 180� and the optional double section make cabling and component exchange particularly easy.

Features



Certification



ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7


Frame type



Closed


Front door construction



Glass


Front door key lock



Yes


Key lock



Yes


Material



Glass, SPCC


Maximum weight capacity



30 kg


Product colour



Grey


Rack capacity



9U


Removable side panels



Yes


Side panels included



Yes


Type



Wall mounted rack


Package dimensions



Gross Weight (Package, kg)



8 kg


Product dimensions



Net Weight (Product, kg)



7.9 kg


Product Depth



60 cm


Product Height



46 cm


Product Width



54 cm


Technical details



Harmonized System (HS) code



85381000


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)


Weight & dimensions



Size (imperial)



19 "
