Inter-Tech

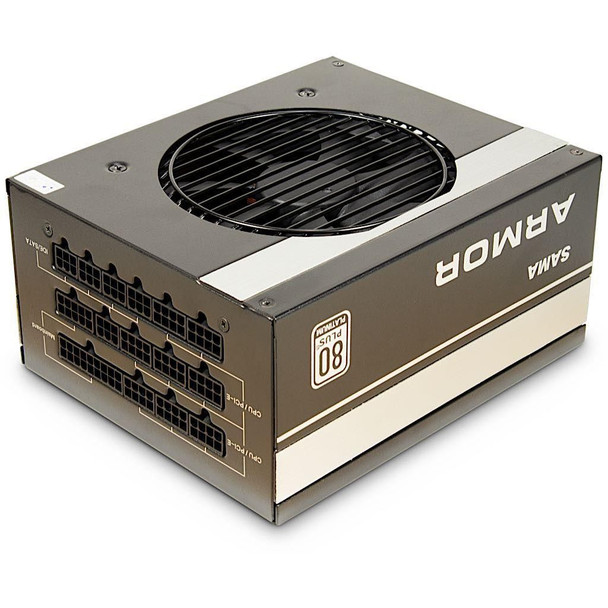

Inter-Tech 88882197 Sama Ftx-1200-A Armor Power 88882197
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- 88882197
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
SAMA FTX-1200-A Armor � Platinum power for your PC
The 1200W powerful power supply from SAMA is 80PLUS Platinum certified and equipped with the latest technology! The DC/DC technology ensures maximum efficiency and stable voltages. With the +12V single-rail technology, a full 98A is also available for power-hungry graphics cards. 105�C-certified A+ premium capacitors from CHEMI-CON Japan offer maximum reliability for well over 100.000 operating hours (MTBF) with over 92% efficiency.
The fully modular cable design offers a free choice in terms of connections. In addition to two 4+4-pin connections for dual-CPU systems, the SAMA FTX-1200-A Armor has nine S-ATA, three Molex and four PCIe 6+2-pin connections, all of which have a flat-cable design, which contributes to a clean cable management in the case.
The smooth-running, temperature-controlled 120mm fan, which reliably cools the inner workings of the power supply, sits in the high-quality power supply housing, which has been provided with aluminum applications. A 10 year manufacturer's guarantee rounds off the overall package and underlines the high quality of the SAMA FTX-1200-A Armor.
Design
Fan diameter
12 cm
Number of fans
1 fan(s)
Product colour
Black
Logistics data
Harmonized System (HS) code
84733020
Package dimensions
Depth (package,cm)
20 cm
Gross Weight (Package, kg)
2.61 kg
Height (package,cm)
13 cm
Width (package,cm)
33.5 cm
Packaging content
Cables included
AC
Performance
80 PLUS certification
80 PLUS Platinum
ATX version
2.4
Noise level
22 dB
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
Cabling type
Modular
EPS power connector (4+4 pin)
Yes
Motherboard power cable length
57 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
9
PCI Express power cable length
53 cm
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
3
SATA power cable length
150, 530
Power
AC input frequency
47 - 63 Hz
AC input voltage
110 - 240 V
Combined power (+12V)
1176 Watt
Combined power (+3.3V)
100 Watt
Combined power (+5V)
100 Watt
Combined power (+5Vsb)
15 Watt
Combined power (-12V)
2.4 Watt
Efficiency
89.31 %
Input current
6 - 15 A
Max output current (+12V)
98 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.2 A
Peak power
1200 Watt
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over voltage, Overload, Short circuit
Total power
1200 Watt
Product dimensions
Net Weight (Product, kg)
2.01 kg
Product Depth
18 cm
Product Height
8.6 cm
Product Width
15 cm
Vendor information
Brand Name
Inter-Tech
Warranty
1 Year(s)
