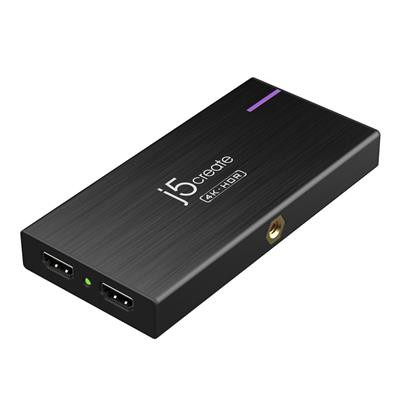

J5create 4K Game Capture Station JVA14-N

Product Group:

Capture Cards



Manufacturer:

J5CREATE



SKU:
6862


Product Specifications



Product Name:

J5Create 4K Game Capture Station



Web Address:

en.j5create.com



Model Number:

JVA14-N



EAN:

4712795086461



Package Type:

Retail



Warranty:

2 Years



Colour:

Black



Enclosure:

Aluminium



Host Connector:

1 x USB-C 3.2 Female



Ports:

1 x USB-C 3.2 Gen 1
1 x HDMI Input
1 x HDMI Output
1 x Audio Out (3.5 mm)
1 x Mic In (3.5 mm)



Audio Input:

1 x 3.5mm AUX



Audio Output:

1 x 3.5mm AUX



Video Input:

1 x HDMI Female



Video Output:

1 x HDMI Female



Power Source:

Bus-powered



Audio Channel:

2.1 via HDMI



Audio Frequency:

48kHz



Format:

USB 3.0: RGB / YUV4:2:2 / YUV4:2:0
USB 2.0: YUV4:2:0



Headset:

2.1 Stereo



Microphone:

Stereo microphone supported
24-bit sigma-delta ADC



Max Capture:

Capability: USB 3.0: 3840 x 2160 at 30 / USB 2.0: 1280 x 720 at 30
Refresh Rate: 4K30 FPS, 2K60 FPS, 1080p 120FPS
Resolution: 3840 x 2160



Max Passthrough:

Resolution: 3840 x 2160 max
Refresh Rate: 4K60 Hz HDR, 2K144 Hz HDR, 1080p240 Hz HDR



Power:

Consumption: =900 mA
Delivery: 60W via USB-C



Cable Length:

1m



Humidity:

<85% non-condensing



Temperature:

Operating: 0 to 40-C
Temperature: -10 to 65-C



Product Width:
4.6mm



Product Length:
.4mm



Product Height:

63.7mm



Product Weight:
2.5g



Package Width:

7.5cm



Package Length:
.5cm



Package Height:

7cm



Gross Weight:

0.37Kg



Special Features:

Uncompressed 4K at 30 Capture + 4K@60 Loop Out.
4K60 pass-through support (Uncompressed).
Power Only: Orange.
No driver installation required.
HDR Passthrough: Supports resolutions up to 4K at 60Hz, 1440p at 144Hz, and 1080p at 240Hz.
Ultra-low latency stream with high-performance USB-C 3.2 connection.
LED indicator to keep track of USB speeds and compression rates.
USB 3.0 connection: Purple (Uncompressed).
USB 2.0 connection: Blue (Uncompressed).



Package Contents:

1 x JVA14 4K Game Capture Station
1 x USB-C 3.0 to USB Type-A cable 60cm
1 x USB-C 3.0 to USB-C cable 60cm
1 x HDMI 2.0 cable 1m
1 x Quick Installation Guide (QIG)
