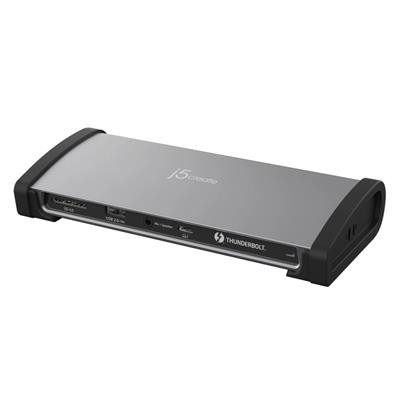

J5create 8K Thunderbolt 4 Docking Station JTD562-FN

Product Group:

Adapters & Docks



Manufacturer:

J5CREATE



SKU:
6890


Product Specifications



Product Name:

J5Create 8K Thunderbolt 4 Docking Station UK



Web Address:

en.j5create.com



Model Number:

JTD562-FN



EAN:

4712795086928



Package Type:

Retail



Warranty:

2 Years



Enclosure Type:

Aluminium



Colour:

Black / Space Grey



Hardware:

Audio Supported: Yes
Host Connector: 1 x Thunderbolt 4 Female
Network Interface: RJ45 (Gigabit Ethernet)
Ports
1 x USB-C Power Delivery 96W (Host)
3 x Thunderbolt 4 USB-C 40Gbps
3 x USB 3.2 Type-A Gen 2 10Gbps
1 x USB 2.0 Type-A with BC1.2 fast charging
1 x SD 4.0 UHS-II 312 MB/s memory card reader/writer
1 x 3.5 mm combo audio jack
1 x RJ45 Gigabit Ethernet
Power Source: Self-powered
Video Output: 3 x Thunderbolt 4 Female



Performance:

Audio Channel: 3 -Thunderbolt 4 / 3.5 combo audio jack
Compatible Networks: 10/100/1000 Base-T, auto-negotiating
Displays Supported: 2
Max Data Transfer Rate: 40Gbps
Max Display Refresh Rate: 60Hz via Thunderbolt 4
Max Display Resolution:Thunderbolt Mode
2 x 4K at 60 Hz
1x 4K at 120 Hz (Via DP)
1x 8K at 60 Hz
MFDP Mode (Base on HBR3 Host)
1 x 4K at 60 Hz



Power:

Input Current: 2.5A
Input Voltage: 110V-240V
Output Current: 6.75A
Output Voltage: 20V
Power Consumption: 1.2A
Power Delivery: 96W



Cable Length:

70cm



Temperature:

Operating: 0 to 48-C
Storage: -10 to 65-C



Humidity:

< 85% non-condensing



Product Width:

84.39mm



Product Length:

30.85mm



Product Height:
4mm



Product Weight:

411g



Package Width:
.2cm



Package Length:

23.7cm



Package Height:

9.4cm



Gross Weight:

1.36Kg



Special Features:

Providing the ultimate connectivity for Thunderbolt 4 laptops.
Intel Thunderbolt 4 certified for reliability and compatibility.
Capable of ultra-high data transfer speeds.
Supports dual 4K at 60Hz displays or one high-resolution 8K display with crystal clear image quality.
Supports Thunderbolt daisy chain feature to connect more Thunderbolt devices.
Perfectly made for MacBook Pro (2021 and later) and Thunderbolt 4 laptops.
3 x Thunderbolt 4 USB-C 40Gbps.
Power adapter 135W AC adapter with up to 96W PD charge.
Backwards compatible with Thunderbolt 3.



Package Contents:

1 x JTD562 Thunderbolt 4 Docking Station
1 x 135W AC adapter with up to 96W PD charge
1 x Thunderbolt 4 to Thunderbolt 4 Cable (70cm)
2 x USB-C to 4K DisplayPort Cable
1 x Quick Installation Guide (QIG)
