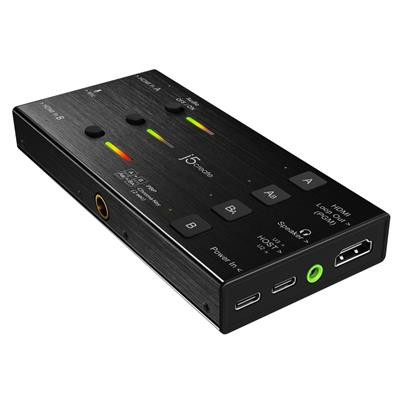

J5create Dual Hdmi Video Capture JVA06-N

Product Group:

Capture Cards



Manufacturer:

J5CREATE



SKU:
6861


Product Specifications



Product Name:

J5Create Dual HDMI Video Capture



Web Address:

en.j5create.com



Model Number:

JVA06-N



EAN:

4712795085563



Package Type:

Retail



Warranty:

2 Years



Colour:

Black



Enclosure:

Aluminium



Host Connector:

1 x USB-C Male



Ports:

1 x USB-C 3.0 (host)
1 x USB-C 3.0 (power)
2 x HDMI input
1 x HDMI output
1 x Mic in
1 x Speaker out
2 x Cold shoes



Audio Input:

HDMI or 3.5 mm Mic in



Audio Output:

HDMI or 3.5 mm Speaker out



Video Input:

2 x HDMI Female



Video Output:

1 x HDMI Female



Power Source:

Bus-powered or self-powered (USB-C PD power)



Audio Channel:

2.1 via HDMI



Audio Frequency:

48kHz



Compressions:

USB 2.0: MJPEG
USB 3.0: YUV 4:2:2



Format:

USB 3.0: YUV 4:2:2
USB 2.0: MJPEG



Headset:

40 mW output power into 16O at 3.3V
THD -75 dB at 20 mW



Microphone:

Stereo microphone supported
24-bit sigma-delta AD



Max Display Refresh Rate:

60Hz



Supported Resolution - Input:

Progressive:1920 x 1080p at 24/25/30/50/60 80 x 1050p at 60 00 x 1200p/900p at 60 40 x 900p at 60 00 x 1050p at 60 66 x 768p at 60 60 x 768p at 60 80 x 1024p/800p/720p at 60 24 x 768p at 60
800 x 600p at 60
720 x 576p/480p at 60
640 x 480p at 60
Interlace:1920 x 1080i at 50/60
720 x 576i at 50
720 x 480i at 60



Supported Resolution - Output:
20 x 1080p at 60 80 x 720p at 60
720 x 576p at 50
720 x 480p at 60
640 x 480p at 60



Power:

Input Current: Up to 3A
Input Voltage: Up to 20V
Output Current: Up to 3A
Output Voltage: Up to 20V
Power Consumption: ? 1000mA
Power Delivery: Up to 60W via USB-C



Cable Length:

USB-C to USB-C: 60cm
USB-C to USB Type-A: 60cm



Humidity:

< 85% non-condensing



Temperature:

Operating: 0 to 45-C
Storage: -10 to 65-C



Product Width:
4.6mm



Product Length:

63.7mm



Product Height:
.4mm



Product Weight:
2g



Package Width:

9.5cm



Package Length:
.5cm



Package Height:

7cm



Gross Weight:

0.42Kg



Special Features:

Dual HDMI input for capturing 2 channels.
Full HD video and audio high performance record/playback through USB-C 3.1 Gen1.
Uncompressed 1080p at 60 FPS capture via HDMI 1.3a.
Supports 1080p 60 HDMI loop out (PGM out).
6 screen mode configurations with PIP (Picture in Picture) and PBP (Picture by Picture).
Easily switch between different screen modes and adjust transition effects with the built-in buttons.
Directly activate Chroma through the built-in controls.
Adjustable segmented window arrangements in PBP (Picture by Picture) mode.
Flexible audio connection via HDMI or add external audio with 3.5 mm mic-in and speaker out audio jack.
3 individual audio mixer on/off switches supported.
3 channel volume indicators.
Easy DSLR attachment with 2 cold shoe adapters (included).
Supports USB-C Power Delivery 3.0.
UVC standard, plug and play.
LED activity indicator: HDMI IN. / USB Link. / Volume Unit.



Package Contents:

1 x JVA06 Dual HDMI Video Capture
1 x Quick Installation Guide (QIG)
1 x USB-C 2.0 to USB-C cable
1 x USB-C 3.0 to USB Type-A cable
1 x 100cm HDMI cable
