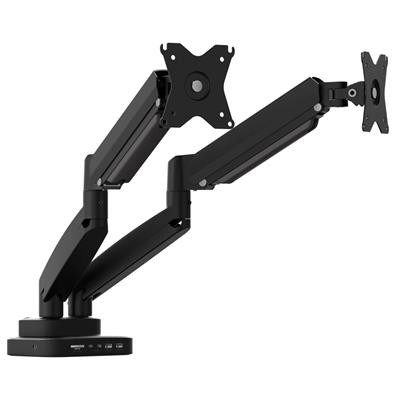

J5create Ergonomic Dual-Monitor Mount With Docking Station JTSA302-N

Product Group:

Display Acc



Manufacturer:

J5CREATE



SKU:
6897


Product Specifications



Product Name:

J5Create Ergonomic Dual-Monitor Mount with Docking Station



Web Address:

en.j5create



Model Number:

JTSA302-N



EAN:

4712795088298



Package Type:

Retail



Warranty:

2 Years



Colour:

Black



Hardware:


Adjustable Angle:
Screen Tilt: -45- to +90-
Arm Swivel: -180- to +180-
Screen Swivel: -90- to +90
Screen Rotation: 360-
Assembly Required: Yes
Audio Supported: Yes
C-Clamp Base: Yes (10
50mm)
C - Clamp Base: Yes (10
50mm)
Docking Station Included: Yes
Grommet Mounting Base: Yes (10
50mm)
Host Connector: 1 x USB-C Female
Maximum Weight Capacity: 8Kg
Network Interface: Yes
Ports:2 x 4K60 HDMI (MST Dual 4K60)
2 x USB-C 10 Gbps
1 x USB Type-A 5Gbps
1 x USB Type-A 10Gbps
1 x 100W PD pass through charging
1 x SD / microSD 4.0
1 x Gigabit Ethernet
Power Source: Bus-powered or self-powered
VESA Pattern: 75x75mm/100x100mm
Video Output: 2 x HDMI Female




Performance:


Audio Channel: 2.1 via HDMI
Displays Supported: 2
Max Display Refresh Rate: 4K at 60Hz
Max Display Resolution: 3840 x 2160
Wide Screen Supported: Yes




Power:


Input Current: Up to 5A
Input Voltage: Up to 20V
Output Current: Up to 4.25A
Output Voltage: Up to 20V
Power Consumption: = 900 mA
Power Delivery: Up to 100W




Humidity:

< 85% non-condensing



Temperature:


Operating: 0 to 30-C
Storage: -10 to 65-C




Product Width:
0mm



Product Length:

465mm



Product Height:

320mm



Product Weight:

4000g



Package Width:

24.3cm



Package Length:

51.5cm



Package Height:
.7cm



Gross Weight:

4.43Kg



Special Features:


Fully adjustable gas spring dual monitor mount with 10-in-1 dock.
Easily adjusts monitors to any height and allows the monitors to swivel 180-, tilt -45- to +90- and rotate 360-. Conveniently set your monitors at optimal angles.
Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI, Gigabit Ethernet, 1 x USB Type-A 10Gbps, 1 x USB Type-A 5Gbps, 2 x USB-C 10Gbps, SD/microSD 4.0, and up to 100W PD pass through charging




Package Contents:


1 x JTSA302 Ergonomic Dual-Monitor Mount with Docking Station
1 x USB-C 10Gbps male to male host cable 100cm
1 x Installation tools and accessories
1 x Quick Installation Guide (QIG)
