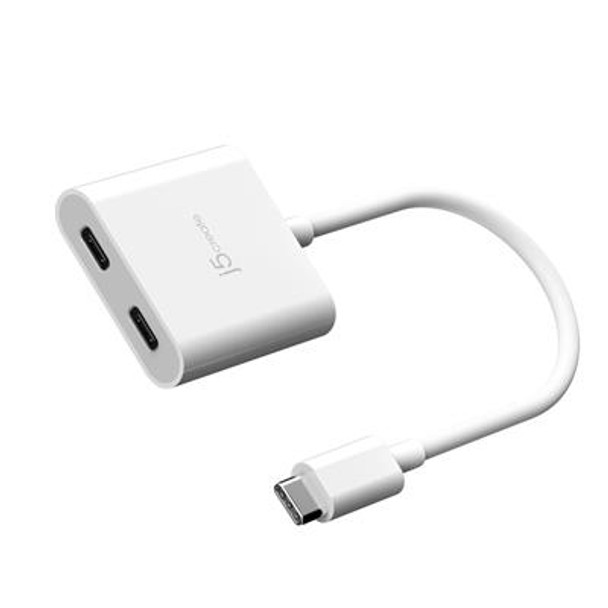

J5create Usb-C To Dual Usb-C With Video Or Power Delivery JCA164-N

Product Group:

Adapters & Docks



Manufacturer:

J5CREATE



SKU:
6884


Product Specifications



Product Name:

J5Create USB-C to Dual USB-C with Video or Power Delivery



Web Address:

en.j5create.com



Model Number:

JCA164-N



EAN:

4712795088779



Package Type:

Retail



Warranty:

2 Years



Enclosure Type:

ABS Plastic



Colour:

White



Hardware:

Audio supported: Yes
Host Connector: 1 x USB-C Male
Ports
1 x USB-C 4K at 240 Hz with USB 480 Mbps
1 x USB-C with Power Delivery 3.0 upstream charging up to 100W
Power Source: Bus-powered or self-powered
Video Output: 2 x USB-C Female



Performance:

Displays Supported: 1
Max Data Transfer Rate: 480 Mbps
Max Display Refresh Rate: 240Hz
Max Display Resolution:3840 x 2160 at 240Hz
2560 x 1440 at 240Hz 20 x 1080 at 240Hz



Power:

Pd Input Current: Up to 5A
Pd Input Voltage: Up to 20V
Pd Output Current: Up to 4.75A
Pd Output Voltage: Up to 20V
Power Consumption: = 350 mA
Power Delivery: Up to 100W via USB-C



Cable Length:
0mm



Temperature:

Operating: -1 to 41-C
Storage: -17 to 68-C



Product Width:

42mm



Product Length:

42mm



Product Height:
mm



Product Weight:

23.3g



Package Width:

9.5cm



Package Length:
.5cm



Package Height:

2.5cm



Gross Weight:

0.07Kg



Special Features:

Design for VR/AR Glasses and USB-C Monitor.
Supports USB-C video resolution up to 4K at 240 Hz for VR/AR glasses and USB-C monitor.
Designed specifically for AR glasses or high-resolution monitor, features a USB-C port supporting 4K240Hz video output and 480 Mbps data transfer to offer an optimal immersive visual experience.
Charge while playing! Equipped with a USB-C charging input supporting up to PD 100W.
Suitable for iPhone 15, Android phone or handheld game console like Nintendo Switch and Steam Deck.
Plug-and-play, no driver installation is required.



Package Contents:

1 x USB-C to Dual USB-C with Video or Power Delivery (JCA164)
1 x Quick Installation Guide (QIG)
