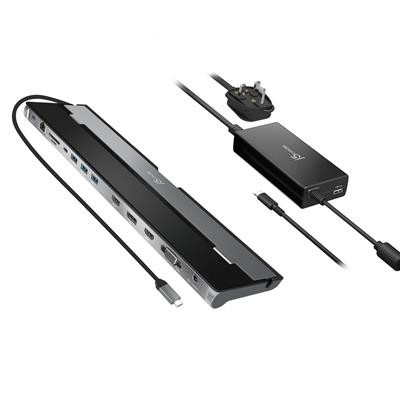

J5create Usb-C Triple Display Docking Station With 100W Pd Adapter JCD543P-FN

Product Group:

Adapters & Docks



Manufacturer:

J5CREATE



SKU:
6887


Product Specifications



Product Name:

J5Create USB-C Triple Display Docking Station with 100W PD Adapter UK



Web Address:

en.j5create.com



Model Number:

JCD543P-FN



EAN:

4712795084009



Package Type:

Retail



Warranty:

2 Years



Enclosure Type:

Aluminium



Colour:

Silver and Black



Hardware:

Audio Supported: Yes
Host Connector: USB-C Male
Network Interface: RJ45 (Gigabit Ethernet)
Ports:2 x USB 3.0 Type-A
1 x USB 3.0 Type-A fast charge
1 x USB-C 3.1 Gen 1
1 x USB-C Power Delivery 3.0
2 x 4K HDMI
1 x DisplayPort
1 x VGA
1 x SD and microSD memory card reader/writer
1 x RJ45 Gigabit Ethernet
1 x 3.5 mm combo audio jack
Power Source: Bus-powered or Self-powered
USB Pass-through: Yes
Video Output:2 x HDMI Female
1 x DisplayPort Female
1 x VGA Female



Performance:

Audio Channel: 2.1 via HDMI/DisplayPort/3.5 mm Aux
Compatible Networks: 10/100/1000 Mbps
Displays Supported: 3 (HDMI, VGA and DisplayPort or HDMI)
Max Data Transfer Rate: 5 Gbps
Max Display Refresh Rate: HDMI/DisplayPort 4K: 30 Hz / HDMI/DisplayPort 1080p: 60 Hz / VGA: 60 Hz
Max Display Resolution: HDMI/DisplayPort: 3840 x 2160 / VGA: 1920 x 1080



Power:

Input Current: 0.8A
Input Voltage: 110 - 220V
Output Current: USB-C - 4.75A / USB Type-A – 2.4A
Output Voltage: Up to 20V
Power Consumption: = 900 mA
Power Delivery: Up to 100W via USB-C



Cable Length:

45cm



Temperature:

Operating: 0 to 48°C
Storage: -10 to 65°C



Humidity:

< 85% non-condensing



Product Width:

82.5mm



Product Length:

350mm



Product Height:

23.37mm



Product Weight:

300g



Package Width:

8.93cm



Package Length:

35.8cm



Package Height:

6.35cm



Gross Weight:

0.92Kg



Special Features:

Triple Display Flexibility and Adaptability: Create a triple-monitor setup with 4K HDMI, 1080p VGA, and 4K DisplayPort outputs and together with your laptop display, you can have a maximum of 4 displays. Available display combinations:HDMI + VGA + DisplayPort
HDMI + VGA + HDMI
USB-C 100W Power Delivery: With the attached USB-C cable, the dock will power and charge power-hungry laptops, with up to 100W Power Delivery and power your connected peripherals when it’s used with a USB-C power adapter.
Multiple Connections: To support all of your USB peripherals, the dock provides a total of four USB 3.0 ports (1 USB-C and 3 USB Type-A ports), a Gigabit Ethernet port, SD/microSD card slots and a combo audio jack.
BC 1.2 Fast Charging: One of the USB 3.0 Type-A ports is a fast-charge port, so you can charge your mobile devices faster than you can from a standard USB port.
Cutting-Edge Design: Advanced heat-eliminating design is the perfect solution to expand your laptop into a full-sized workstation without the worry of overheating and with the double-sided cable storage compartment, you can place the cable any way you like.



Package Contents:

1 x JCD543P USB-C Triple Display Docking Station
1 x JUP2290 100W USB-C Super Charger
1 x Quick Installation Guide
