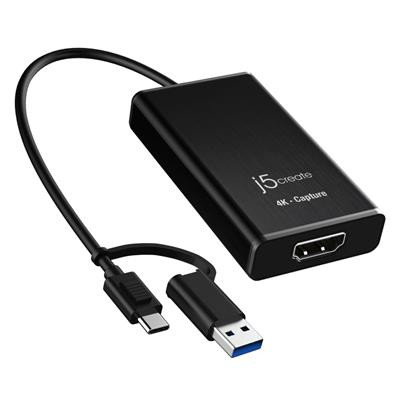

J5create Video Capture Usb Hub JVA11-N

Product Group:

Capture Cards



Manufacturer:

J5CREATE



SKU:
6865


Product Specifications



Product Name:

J5Create Video Capture USB Hub



Web Address:

en.j5create.com



Model Number:

JVA11-N



EAN:

4712795086607



Package Type:

Retail



Warranty:

2 Years



Colour:

Black



Enclosure:

Aluminium



Host Connector:

1 x USB-C 3.2 Gen 1 Female (Type-A to USB-C)



Ports:

1 x USB-C 3.2 Gen 1 (Host)
1 x HDMI Input



Audio Input:

1 x HDMI Female



Video Input:

1 x HDMI Female



Video Output:

2.1 via HDMI



Power Source:

Input Current: 1.5A
Input Voltage: 5V



Audio Channel:

2.1 via HDM



Audio Frequency:

48kHz



Compressions:

USB 3.0: RGB / YUV4:2:2 / YUV4:2:0
USB 2.0: YUV4:2:0



Max Capture:

USB 3.0: 3840 x 2160 at 30
USB 2.0: 1280 x 720 at30



Max Capture Refresh Rate:

4K 30 fps, 2K 60 fps, 1080p 120 fps



Power:

Input Current: 1.5A
Input Voltage: 5V



Cable Length:
cm



Humidity:

Operating: <80% non-condensing
Storage:<85% non-condensing



Temperature:

Operating: 0 to 40-C
Storage: -10 - 65?



Product Width:

41mm



Product Length:
.14mm



Product Height:

72mm



Product Weight:

55g



Package Width:

9.5cm



Package Length:
.5cm



Package Height:

2.5cm



Gross Weight:

0.09Kg



Special Features:

HDMI input for capturing.
4K video and audio high-performance record through USB-C 3.2 Gen 1.
UVC standard - No driver installation required.
Ultra-low latency stream through USB-C 3.2 Gen 1 connection.
Field production made easy with its compact size.



Package Contents:

1 x JVA11 4K HDMI Capture Adapter
1 x Quick Installation Guide (QIG)
