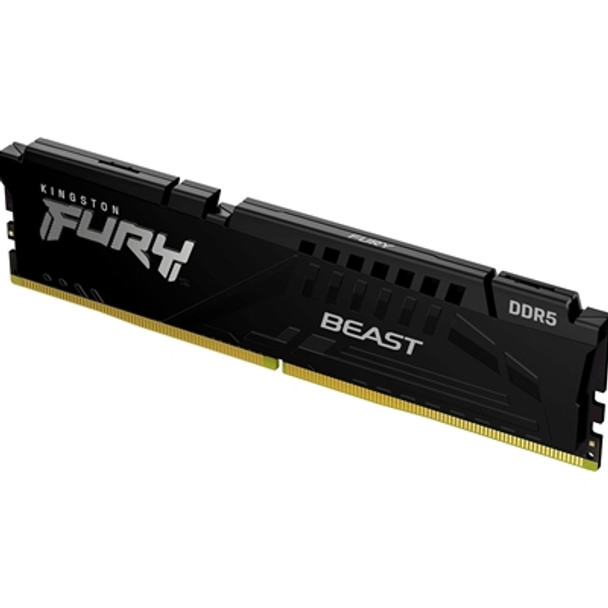

Kingston Fury Beast KF560C36BBE2-16 16Gb System Memory 6000Mt/S Ddr5 Cl36 Dimm B KF560C36BBE2-16

The Kingston FURY KF560C36BBE2-16 is a 2G x 64-bit (16GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports AMD EXPO v1.1 and Intel Extreme
Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-44-44 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.


Voltage: 1.35V
Latency Timing: CL36
Speed: 6000MT/s (PC5-48000)
1 x 16GB DIMM Memory
Intel XMP Profile Support
non-ECC Unbuffered Memory

Specification

General

Capacity GB

Upgrade Type
Generic

Width3.35 mm

Depth
6.62 mm

Height
34.9 mm

Memory

Type
DRAM memory module

Technology
DDR5 SDRAM

Form Factor
DIMM 288-pin

Module Height (inch)
1.37

Speed
6000 MHz (PC5-48000)

Latency Timings
CL36 (36-44-44)

Data Integrity Check
On-die ECC

Features
Intel Extreme Memory Profiles (XMP 3.0), AMD EXPO, low profile heatspreader, plug n play, single rank, unbuffered

Module Configuration48 x 64

Chips Organization
X8

Voltage
1.35 V

Lead Plating
Gold

RAM Performance
SPD - 4800 MHz - 1.1 V - CL40 - 40-39-39
AMD extended profile for overclocking (EXPO) - 6000 MHz - 1.35 V - CL36 - 36-44-44
AMD extended profile for overcloking (EXPO) - 5600 MHz - 1.25 V - CL40 - 40-40-40
Intel Extreme Memory Profiles (XMP 3.0) - 6000 MHz - 1.35 V - CL36 - 36-44-44
Intel Extreme Memory Profiles (XMP 3.0) - 5600 MHz - 1.25 V - CL40 - 40-40-40

Miscellaneous

Colour
Black

Compliant Standards
JEDEC, UL 94 V-0

Manufacturer Warranty
Limited lifetime warranty
