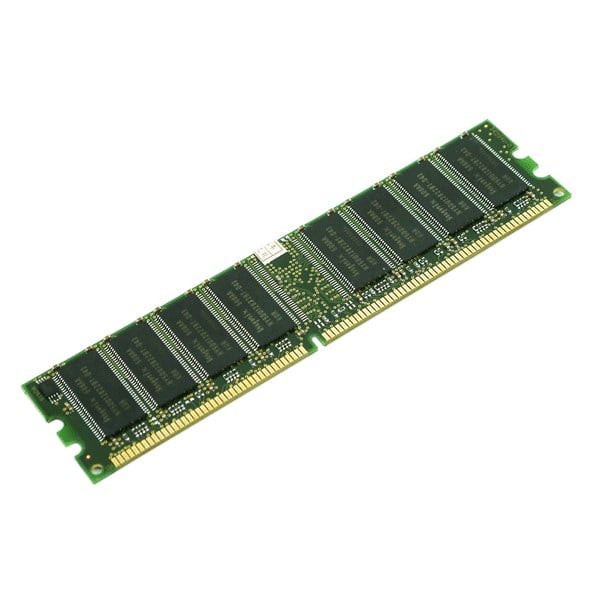

Kingston Technology ValueRAM KVR26N19S6/4 Memory Module 4 GB 1 X 4 GB DDR4 2666 KVR26N19S6/4

ValueRAM's KVR26N19S6/4 is a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Specs




Features


Buffered memory type

Unregistered (unbuffered)


CAS latency

Column Address Strobe (CAS) latency, or CL, is the delay time between the moment a memory controller tells the memory module to access a particular memory column on a RAM module, and the moment the data from the given array location is available on the module's output pins. In general, the lower the CAS latency, the better.



Internal memory

A computer's memory which is directly accessible to the CPU.

4 GB


Memory layout (modules x size)

How the overall memory of the product is put together, defined by the number of modules and the size.

1 x 4 GB


Internal memory type

The type of internal memory such as RAM, GDDR5.

DDR4


Memory data transfer rate

2666 MT/s


Component for

What this product is used as a part of (component for).

PC/Server


Memory form factor

Design of the memory e.g. 240-pin DIMM, SO-DIMM.

288-pin DIMM


ECC

ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.




Memory channels

Single-channel


Memory ranking

1


Memory voltage

The voltage (V) of the memory in the device.

1.2 V


Module configuration

512M x 64


Row cycle time

45.75 ns


Refresh row cycle time

350 ns


Row active time

32 ns


Programming power voltage (VPP)

1.2 V


Country of origin

Country where the device is made. Aka Country of manufacture (COM).

Taiwan



Features


Product colour

The colour e.g. red, blue, green, black, white.

Berry, Green


Cooling type

The method used to cool the device or to cool the air around the device.

Heatsink


Lead plating

Gold


Backlight

Product has a built-in light source for its illuminating.




Windows operating systems supported

Windows vesions wich can be used with the device.




Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.




Linux operating systems supported

8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)




JEDEC standard




Compatible products

Other products that can be used with this product.

370 ROG STRIX H370-F GAMING D840MA Desktop Series D840MB Desktop Series D840SA Desktop Series PRIME B350 - PLUS PRIME B350-PLUS PRIME B350M - A PRIME B350M-A PRIME B350M-A/CSM PRIME B360-PLUS/CSM PRIME B360M-A PRIME B360M-C/CSM PRIME B360M-K PRIME B450-PLUS PRIME B450M-A PRIME B450M-A/CSM PRIME H310-PLUS PRIME H310I-PLUS/CSM PRIME H310M-A PRIME H310M-A/CSM PRIME H310M-C/CSM PRIME H310M-D PRIME H310M-E PRIME H310M-K PRIME H370-A/CSM PRIME H370-PLUS PRIME H370-PLUS/CSM PRIME H370M-PLUS PRIME H370M-PLUS/CSM PRIME X370-A PRIME X470-PRO ROG CROSSHAIR VI EXTREME ROG CROSSHAIR VI HERO ROG CROSSHAIR VII HERO ROG CROSSHAIR VII HERO (WI-FI AC) ROG CROSSHAIR VII HERO (WI-FI) ROG MAXIMUS X CODE ROG MAXIMUS X FORMULA ROG MAXIMUS X HERO (WI-FI AC) ROG MAXIMUS X HERO ROG STRIX B360-F GAMING ROG STRIX B360-G GAMING ROG STRIX B360-H GAMING ROG STRIX B360-H GAMING/OPTANE ROG STRIX B360-I GAMING ROG STRIX B450-F GAMING ROG STRIX GL12CM ROG STRIX GL12CP ROG STRIX H370-I GAMING ROG STRIX X470-F GAMING ROG STRIX X470-I GAMING TUF B350M-PLUS GAMING TUF B360-PLUS GAMING TUF B360-PRO GAMING (WI-FI) TUF B360M-PLUS GAMING TUF B450M-PLUS GAMING TUF H310-PLUS GAMING TUF H310M-PLUS GAMING TUF H370-PRO GAMING (WI-FI) TUF X470-PLUS GAMING X370 PRIME X370-A X370 PRIME X370-PRO X370 STRIX X370-F GAMING Z370 PRIME Z370-A Z370 PRIME Z370-P Z370 ROG MAXIMUS X APEX Z370 ROG STRIX Z370-E GAMING Z370 ROG STRIX Z370-F GAMING Z370 ROG STRIX Z370-G GAMING Z370 ROG STRIX Z370-G GAMING (WI-FI AC) Z370 ROG STRIX Z370-H GAMING Z370 ROG STRIX Z370-I GAMING Z370 TUF Z370-PLUS GAMING Z370 TUF Z370-PRO GAMING B360 AORUS GAMING 3 B360 AORUS GAMING 3 WIFI B360 HD3 B360 HD3P B360M AORUS GAMING 3 B360M D3H B360M D3P B360M DS3H B360M HD3 H370 AORUS GAMING 3 H370 AORUS GAMING 3 WIFI H370 HD3 H370M D3H GSM H370M D3H H370M DS3H H370N WIFI Z370 AORUS Gaming 3 Z370 AORUS Gaming 5 Z370 AORUS Gaming 7 Z370 AORUS Gaming 7-OP Z370 AORUS Gaming K3 Z370 AORUS GAMING WIFI Z370 AORUS Ultra Gaming 2.0 Z370 AORUS Ultra Gaming 2.0-OP Z370 AORUS Ultra Gaming Z370 AORUS Ultra Gaming WIFI Z370 AORUS Ultra Gaming WIFI-OP Z370M D3H Z370M DS3H Z370P D3 Z370XP SLI XPC SH370R6


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 85 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-55 - 100 °C


Technical details


Compliance certificates

RoHS


Sustainability


Doesn't contain

Halogen


Weight & dimensions


Width

The measurement or extent of something from side to side.
3.3 mm


Height

The measurement of the product from head to foot or from base to top.

31.2 mm


Logistics data


Harmonized System (HS) code

84733020
