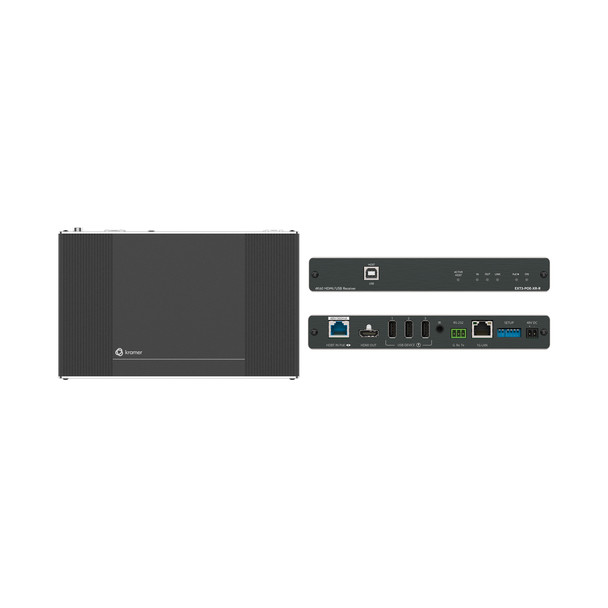

Kramer Electronics EXT3-POE-XR-R AV receiver 100 m Wired Black HDCP EXT3-POE-XR-R

EXT3?POE?XR?R is a high?performance, extended?reach HDBaseT 3.0 receiver for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS?232, and IR signals and 2?way powering over twisted pair. EXT3?POE?XR?R receiver receives the HDBaseT 3.0 signal and converts it back into the original input signals. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution. This receiver either provides power over the copper extension cable to a POE (Power over Ethernet) acceptor device, or accepts PoE through the extension cable from a PoE provider remote device, as auto?sensed by the receiver.

Features


High Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. EXT3-POE-XR-R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables


Bidirectional PoE (Power over Ethernet) - Auto-senses the extension line PoE status and either provides power to a remote POE acceptor such as a PoE wall-plate, or accepts power from a remote PoE provider such as a PoE matrix


HDMI Signal Extension - HDCP 2.3, EDID and CEC signals are passed through from the source to the display


HDMI Support - Supports HDR10, deep color, x.v.Color�, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


Flexible USB 2.0 Extension - An active USB host is connected at either the transmitter or receiver sides of the extension line. USB 2.0 signals are extended between the extender transmitter and receiver sides, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices


I-EDIDPro� Kramer Intelligent EDID Processing� - Intelligent EDID handling, processing, and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems


Multi-channel Audio Transmission - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound


Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 1 Gbps Ethernet connectivity for LAN communication and device control


Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control


Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line


Cost-effective Maintenance - Status LED indicators for HDMI, HDBT, USB active host ports, and PoE providing status facilitate easy local maintenance and troubleshooting


Easy and Elegant Installation - MegaTOOLS� fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter



Weight & dimensions


Height

27 mm


Width

190 mm


Depth

116 mm


Weight

600 g



Technical details


Compliance certificates

CE, RoHS, WEEE


Sustainability certificates

CE, RoHS, WEEE



Features


Type

AV receiver


RS-232 pass-through

Yes


Bandwidth

18 Gbit/s


Product colour

Black


HDCP

Yes


Maximum transfer distance

100 m


Certification

RoHS,WEEE, CE



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

10 - 90


Storage temperature (T-T)

-40 - 70 �C



Ports & interfaces


USB ports quantity

2


USB version

2.0


RS-232 input ports

1


RJ-45 input ports

1


HDMI version

2.0b


DC-in jack

Yes


Connectivity technology

Wired


Number of HDMI outputs

1



Power


Input current

1.36 A


Operating voltage

48 V


Power consumption (max)

53 W



Packaging data


Package height

52 mm


Quantity per pack

1 pc(s)


Package depth

165 mm


Package width

345 mm


Package weight

1.2 kg
