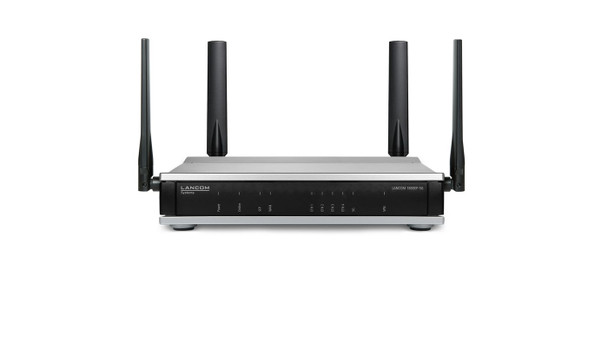

Lancom Systems 62126 Powerful business router with 62126

High performance and fail-safe: In company locations with data-intensive and business-critical applications, this SD-WAN gateway guarantees reliable networking thanks to its high interface diversity. It is suitable for direct connection to both modern fiber optic lines and external modems. The additionally integrated 5G modem ensures the best connection at all times in the event of a failure of the wired Internet, but also as a mobile primary access. With award-winning LANCOM IPSec VPN and SD-WAN, 5 (optionally 25) sites and mobile employees are securely interconnected.

High-speed Internet via fiber optics or Gigabit Ethernet
The high-performance VPN router LANCOM 1800EF-5G enables direct connection to a fiber-optic line (FTTH) via its SFP port using a separately available SFP module (GPON / AON). It also offers maximum flexibility via Gigabit Ethernet for connection to external modems. It is therefore suitable for all fields of application and industries and forms the basis for reliable, high-performance networking.

Fully future-proof with 5G
With the 1800EF-5G, either as a mobile primary access or in active/active mode with other access types, you benefit from all the advantages of 5G technology. Low latency and high-performance use of real-time applications such as telephony, video chat, video streaming in 4K or 8K or augmented reality, even with a high user density, are possible.

LANCOM SD-WAN � Next-level networking
With LANCOM SD-WAN you can manage and monitor your entire corporate network centrally, cost-effectively, quickly, and stress-free! In combination with the LANCOM Management Cloud, the SD-WAN gateway gives you all the options for an automated setup of secure VPN connections (Auto-VPN) between sites, including network virtualization. Highlight features such as High Scalability VPN (HSVPN) and Advanced Mesh VPN offer you a significant plus in scalability and efficiency for a large number of branches and applications. Furthermore, if multiple WAN connections are defined, they are automatically operated in active/active mode (load balancing), thereby increasing the available total bandwidth. With Dynamic Path Selection and Dynamic Traffic Steering, applications are also dynamically routed via the best connection at any given time.

Secure communication via VPN
With virtual private networks (VPN), you use the public medium of the Internet as a communication path and secure the connection in such a way that the communication still remains completely inaccessible to external parties. This SD-WAN gateway offers you five integrated IPSec VPN channels for secure encryption, so that the protection of internal company data is always guaranteed when connecting mobile employees, home offices, or branch offices. With the LANCOM VPN Option, you can also upgrade the device to up to 25 VPN channels, so that the infrastructure can easily grow with your needs without additional hardware.

Advanced Routing & Forwarding
The LANCOM 1800EF-5G provides up to 16 securely isolated and separately routed IP contexts. This is an elegant way of routing all IP applications via a central router and securely separating the various communication channels.

Stateful Inspection Firewall
Equipped with a stateful inspection firewall, the LANCOM 1800EF-5G protects the entire network. With functions such as intrusion prevention and denial of service protection, this device ensures optimum protection so that all data in the network is safe.

Security Made in Germany
Software and hardware development at LANCOM Systems as well as production take place mainly in Germany, as does the hosting of the network management. Particular attention is paid to trustworthiness and security. The company is committed to ensuring that its products are free of backdoors and is a bearer of the "IT Security Made in Germany" quality mark initiated by the German Federal Ministry of Economics.

Maximum future proofing
All LANCOM products are based on professional know-how, many years of IT experience, and high-quality materials. As a matter of principle, all devices are equipped with future-proof hardware dimensioning, and even across product generations, updates to the LANCOM Operating Systems family are available several times a year free of charge. This guarantees many years of use at the latest technical level and thus offers genuine investment protection. In addition, LANCOM infrastructures are easily scalable. Thanks to maximum compatibility, networks can easily be expanded to include additional LANCOM components.

Antenna



Transmitting power (CE)



23 dBm


Transmitting power (FCC)



23 dBm


Design



Product colour



Black, White


Features



Antenna gain level (max)



2 dBi


Antenna type



External


Antennas quantity



4


Management features



DHCPv6 snooping



Yes


IGMP snooping



Yes


Multicast Listener Discovery (MLD) snooping



Y


Reset button



Yes


Syslog



Yes


Traffic shaping



Yes


Network



3G standards



HSPA, UMTS


4G bands supported



700, 800, 850, 900, 1500, 1700, 1800, 1900, 2000, 2100, 2300, 2600, 3500, 3700, 5200


4G standard



LTE


Ethernet LAN data rates



10, 100, 1000


Mobile network generation



5G


Networking standards



IEEE 802.3az


PPTP/L2TP VPN tunnels (max)



25


UMTS bands supported



800, 850, 900, 1700, 1800, 1900, 2100, 2600


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Depth (package,cm)



9.4 cm


Height (package,cm)



28.8 cm


Width (package,cm)



38.5 cm


Packaging content



AC adapter included



Yes


Cables included



LAN (RJ-45)


Manual



Yes


Performance



Control display unit



No


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



4


SIM card slot



Yes


SIM card type



MicroSIM


WAN connection



Ethernet (RJ-45), SFP


Power



Power consumption (max)



18 Watt


Product dimensions



Net Weight (Product, kg)



0.597 kg


Product Depth



14 cm


Product Height



4.5 cm


Product Width



21 cm


Protocols



Routing protocols



BGP4, LISP, OSPFv2, RIP-2, VRRP


Security



Access Control List (ACL)



Yes


Authentication method



PAP, CHAP, MS-CHAP, MS-CHAPv2


MAC address filtering



Yes


Security algorithms



3DES, 1024-bit RSA, 2048-bit RSA, 4096-bit RSA, AES, FIPS 140, SHA-1, SHA-256, SHA-384, SHA-512


VLAN support



Yes


Sustainability



Sustainability certificates



CE


Sustainability compliance



Yes


Vendor information



Brand Name


Lancom Systems


Warranty



3 Year(s)
