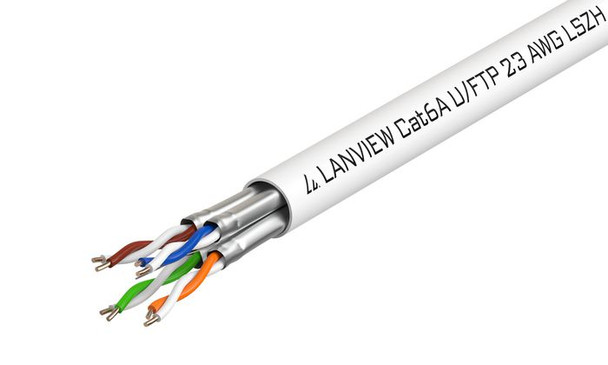

Lanview LVN122430 Cat6a U-FTP Network Cable LVN122430

Lanview Cat6a U-FTP LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.
Suited for high speed cabling systems where there is a need for large data traffic. Especially suited for noisy environments or where there is limited space in the cable routes.

Features



AWG wire size



23


Cable class



D


Cable fire class



Eca


Cable length



500 m


Cable shape



Round


Cable shielding



U/FTP (STP)


Cable standard



Cat6a


Cable type



Cable on reel


Cabling technology



10GBase-T


Conductor material



Copper


Conductor type



Solid


Connector 1



Open end


Connector 1 gender



No


Connector 2



Open end


Connector 2 gender



No


Data transfer rate



10000 Mbit/s


Ethernet interface type



10 Gigabit Ethernet


Frequency



500 MHz


Halogen-free



Yes


Harmonized System (HS) code



84733080


Jacket material



Low smoke zero halogen (LSZH)


Product colour



White


RoHS compliance



Yes


Package dimensions



Depth (package,cm)



35 cm


Gross Weight (Package, kg)



29 kg


Height (package,cm)



40 cm


Width (package,cm)



35 cm


Packaging data



Quantity per pack



1 pc(s)


Product dimensions



Net Weight (Product, kg)



25 kg


Product Depth



35 cm


Product Height



40 cm


Product Width



35 cm


Vendor information



Brand Name


Lanview


Warranty



5 Year(s)


Weight & dimensions



Outer diameter



7.3 mm
